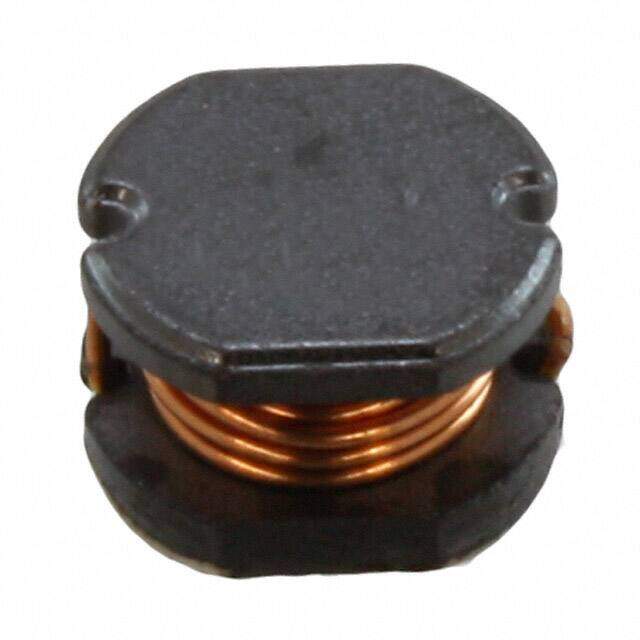

CDRH6D28NP-150NC image
Favorite
CDRH6D28NP-150NC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CDRH6D28 Nonstandard 0.264Lx0.264W 6.70mmx6.70mm 15muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.58696
≥100 USD $0.538208
≥500 USD $0.489456
≥1000 USD $0.4356
≥3000 USD $0.411101
Inventory: 7812
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2006
Series CDRH6D28
Size / Dimension 0.264Lx0.264W 6.70mmx6.70mm
Tolerance ±30%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 7mm
Current Rating 1.4A
Military Standard Not
Inductance 15μH
Test Frequency 100kHz
DC Resistance (DCR) 84mOhm Max
Max DC Current 1.4A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 2626
DC Current 1.4A

Dimensions

Height 3mm
Height Seated (Max) 0.118 3.00mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
