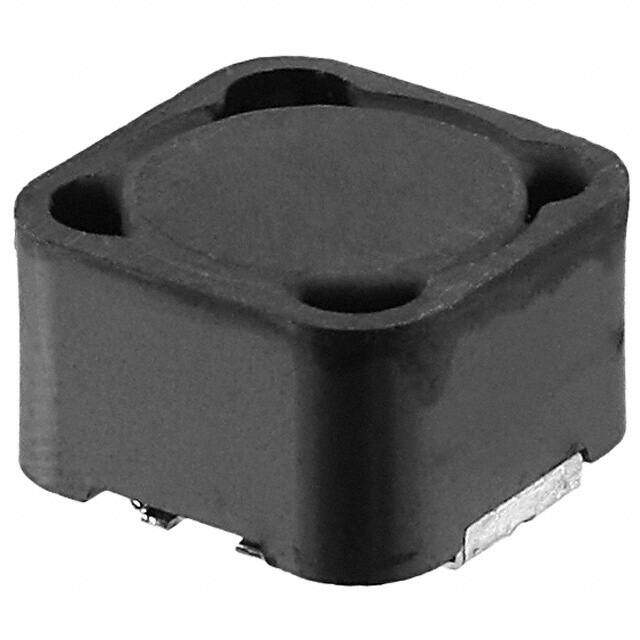

P1173.103NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
P1173NL Nonstandard 0.482Lx0.482W 12.24mmx12.24mm 10muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8056
≥1 USD $0.8056
≥10 USD $0.6612
≥100 USD $0.6403
≥500 USD $0.62035
≥1000 USD $0.59945
Inventory: 305
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.315 8.00mm
Height 8mm
Technical
DC Current 5.2A
Case/Size Code 4848
Current - Saturation 5.5A
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 20MHz
Max DC Current 5.2A
DC Resistance (DCR) 21.8mOhm Max
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Current Rating 5.2A
Construction Chip
Depth 12.24mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Resistance 21.8mOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.482Lx0.482W 12.24mmx12.24mm
Series P1173NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C
Physical
Core Material AMORPHOUS MAGNETIC
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
