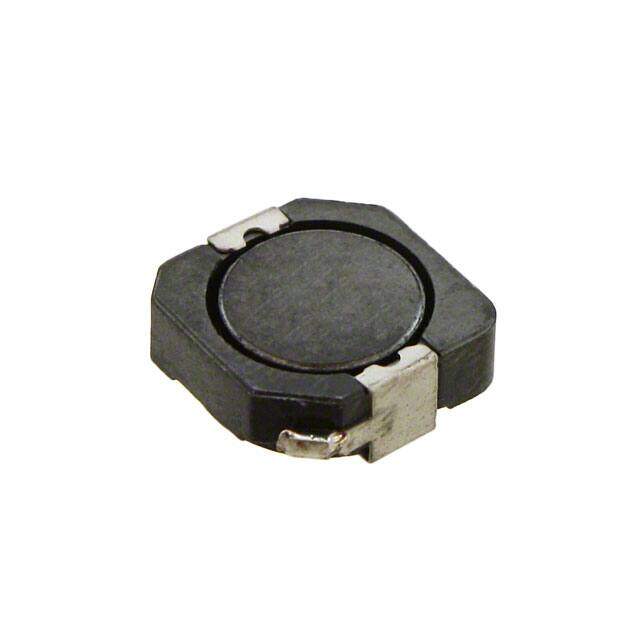

PF0560.103NL image
Favorite
PF0560.103NL image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Wirewound Active WRAPAROUND fixed air core inductor -40C~125C 25MHz 35mOhm Max 10muH
PDF
/
Inventory: 10009
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.157 4.00mm

Technical

DC Current 3.8A
Case/Size Code 4141
Current - Saturation 4.4A
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 25MHz
DC Resistance (DCR) 35mOhm Max
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Current Rating 3.8A
Depth 10.3mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±30%
Size / Dimension 0.409Lx0.406W 10.40mmx10.30mm
Series PF0560NL
Packaging Tray
Operating Temperature -40°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
