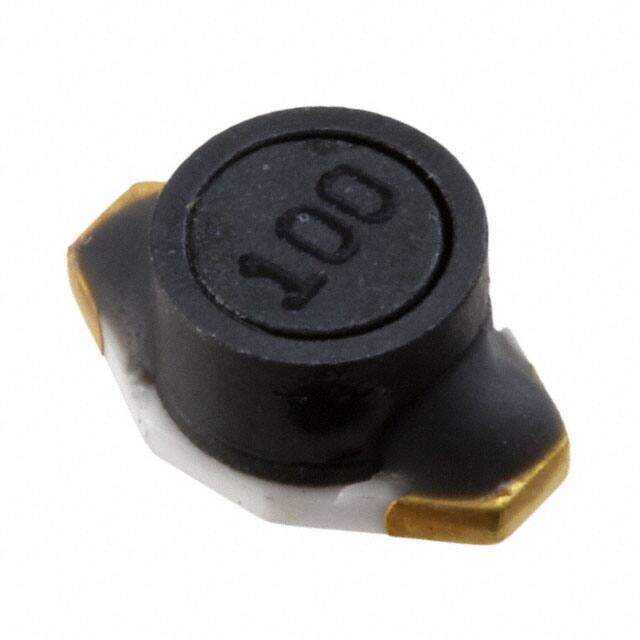

PM1608S-100M-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM1608S Nonstandard 0.260Lx0.173W 6.60mmx4.40mm 10muH
PDF
/
Buying Options
Total Price: USD $1.2
Unit Price: USD $1.1968
≥1 USD $1.1968
≥10 USD $1.00936
≥100 USD $0.917664
≥500 USD $0.862576
≥1000 USD $0.715792
≥3000 USD $0.660739
Inventory: 627
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.118 3.00mm
Height 2.92mm
Technical
Case/Size Code 2617
Q @ Freq 40 @ 200kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 38MHz
Max DC Current 1A
DC Resistance (DCR) 75mOhm Max
Test Frequency 100kHz
Inductance 10μH
Current Rating 1A
Construction Rectangular
Depth 4.4mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed, 7 Inch
HTS Code 8504.50.80.00
Terminal Finish Copper/Nickel/Gold (Cu/Ni/Au)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Tolerance ±20%
Size / Dimension 0.260Lx0.173W 6.60mmx4.40mm
Series PM1608S
Published 2009
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
