ELC-12D101E
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description

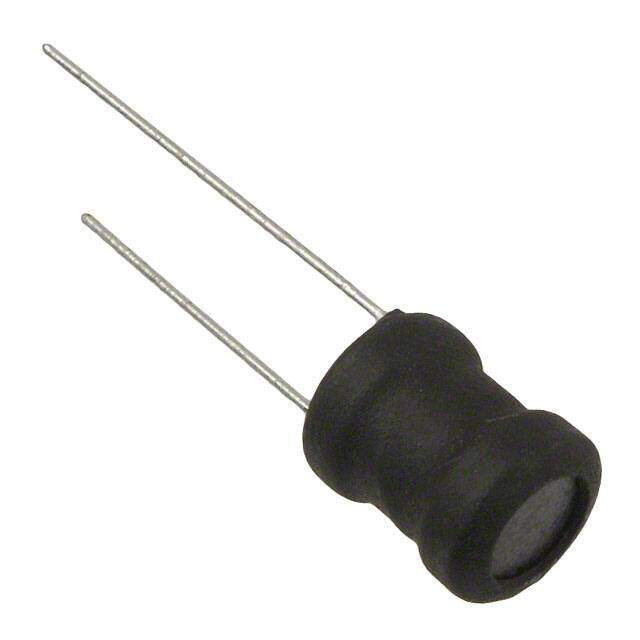

12D Radial Vertical Cylinder 0.492Dia 12.50mm 100muH
PDF
/
Inventory: 7832
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.650 16.50mm
Technical
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
Rated Current-Max 1.9A
Inductance Frequency - Test 10kHz
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 150mOhm
Test Frequency 0.01MHz
Inductance 100μH
Lead Diameter 0.8 mm
Lead Spacing 7.5mm
Lead Length 3.5mm
Operating Temperature (Min) -20°C
Operating Temperature (Max) 105°C
Construction Cylindrical
Number of Functions 1
Shielding NO
Current Rating (Amps) 1.9A
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.492Dia 12.50mm
Series 12D
Published 2006
Packaging Bulk
Physical
Core Material FERRITE
Shape/Size Description CYLINDRICAL PACKAGE
Surface Mount NO
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Supply Chain
Factory Lead Time 17 Weeks
