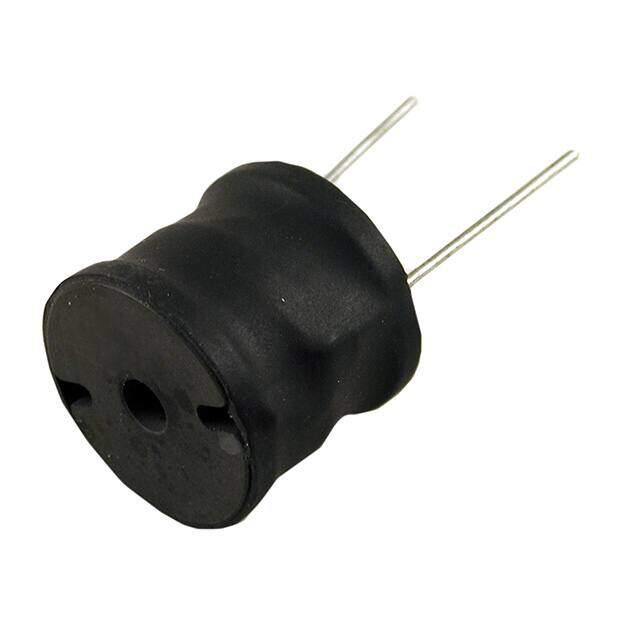

1539M26
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1539 Radial Vertical Cylinder 1.500Dia 38.10mm 100muH
PDF
/
Inventory: 6466
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 1.500 38.10mm
Diameter 38.1mm
Technical
Self Resonant Frequency 1.8MHz
Inductor Application RF INDUCTOR
Max DC Current 14A
DC Resistance (DCR) 18mOhm Max
Test Frequency 1kHz
Inductance 100μH
Lead Spacing 1.18mm
Lead Length 25.4mm
Current Rating 14A
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Part Status Active
Tolerance ±10%
Size / Dimension 1.500Dia 38.10mm
Series 1539
Published 2000
Packaging Bulk
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Weight 300.000012g
Terminal Shape PRINTED WIRING PIN
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
