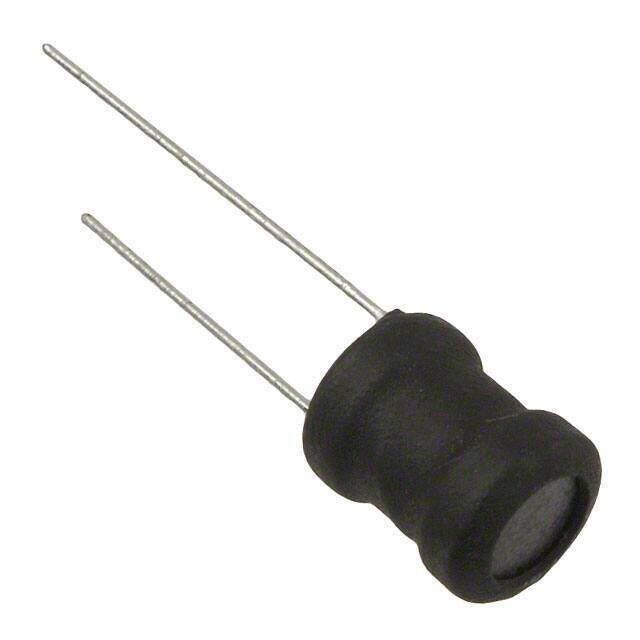

RLB0914-101KL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RLB Radial Vertical Cylinder 0.343Dia 8.70mm 100muH
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.31856
≥100 USD $0.2365
≥500 USD $0.170078
≥1000 USD $0.159447
≥3000 USD $0.154132
Inventory: 22550
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.512 13.00mm
Height 12mm
Diameter 8.7mm
Technical
RMS Current (Irms) 1A
DC Current 1A
Inductance Tolerance 10%
Q Factor 30
Current - Saturation 2.1A
Quality Factor-Min (at L-nom) 30
Lead/Base Style Radial
Q @ Freq 30 @ 796kHz
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 3.5MHz
Max DC Current 1A
DC Resistance (DCR) 280mOhm Max
Test Frequency 796kHz
Inductance 100μH
Lead Diameter 650 μm
Lead Pitch 5mm
Military Standard Not
Base Part Number RLB0914
Current Rating 1A
Construction Shrink Tube
Number of Functions 1
Shielding NO
Orientation Vertical
Current Rating (Amps) 1.1A
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn)
Resistance 280mOhm
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.343Dia 8.70mm
Series RLB
Published 2004
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Material Steel
Number of Pins 2
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 18 Weeks
