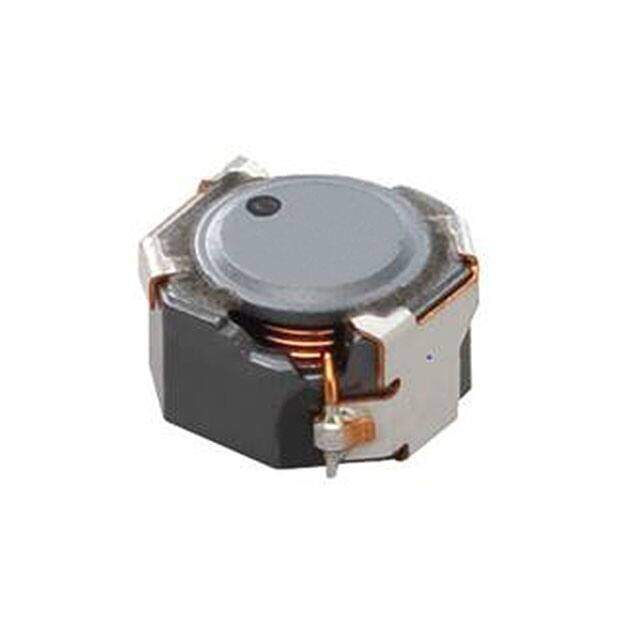

MDH6045C-4R7NA=P3
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MDH6045C Nonstandard 0.248Lx0.236W 6.30mmx6.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.14962
≥1 USD $1.14962
≥10 USD $1.084545
≥100 USD $1.02316
≥500 USD $0.965242
≥1000 USD $0.910608
Inventory: 1284
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 1 month ago)
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Series MDH6045C
Size / Dimension 0.248Lx0.236W 6.30mmx6.00mm
Tolerance ±30%
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 2.7A
Shielding YES
Number of Functions 1
Inductance 4.7μH
Test Frequency 0.1MHz
DC Resistance (DCR) 23mOhm
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 2.9A
Rated Current-Max 2.7A
Dimensions
Height Seated (Max) 0.189 4.80mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
