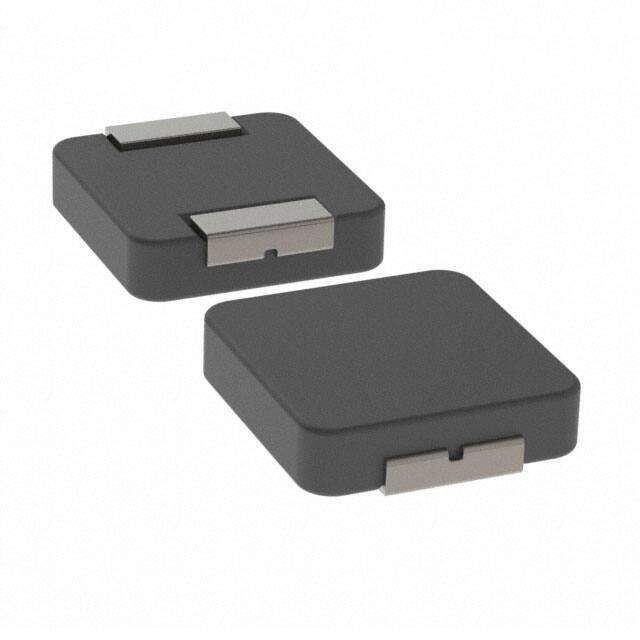

PM4345.472NLT image
Favorite
PM4345.472NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description INDUCTOR 6.0X5.4X2.0MM 4.7UH
PDF
/
Inventory: 9143
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series PM4345.XXXNLT
Size / Dimension 0.175Lx0.160W 4.45mmx4.06mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Molded
Current Rating (Amps) 2.8A
Shielding Shielded
Inductance 4.7μH
DC Resistance (DCR) 116mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 5A

Dimensions

Height Seated (Max) 0.047 1.20mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
