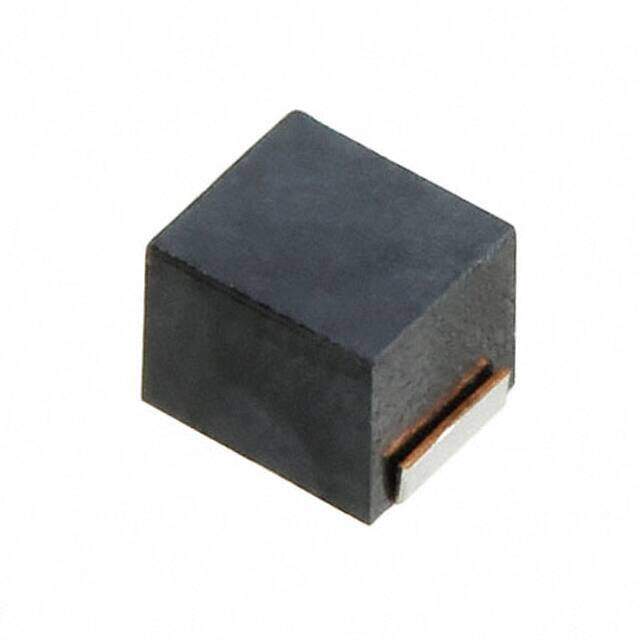

7447629047 image
Favorite
7447629047 image
Favorite

7447629047

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-GFH Nonstandard 0.098Lx0.079W 2.50mmx2.00mm 4.7muH
PDF
/
Inventory: 3295
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 2.0066mm
Length 2.4892mm
Height Seated (Max) 0.079 2.00mm

Technical

Inductance Tolerance 20%
Inductance Frequency - Test 7.96MHz
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 72MHz
Max DC Current 510mA
DC Resistance (DCR) 900mOhm Max
Test Frequency 7.96MHz
Inductance 4.7μH
Current Rating 510mA
Shielding Unshielded
Current Rating (Amps) 510mA
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series WE-GFH
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Material - Core Iron Powder
Supplier Device Package 2520
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 17 Weeks
