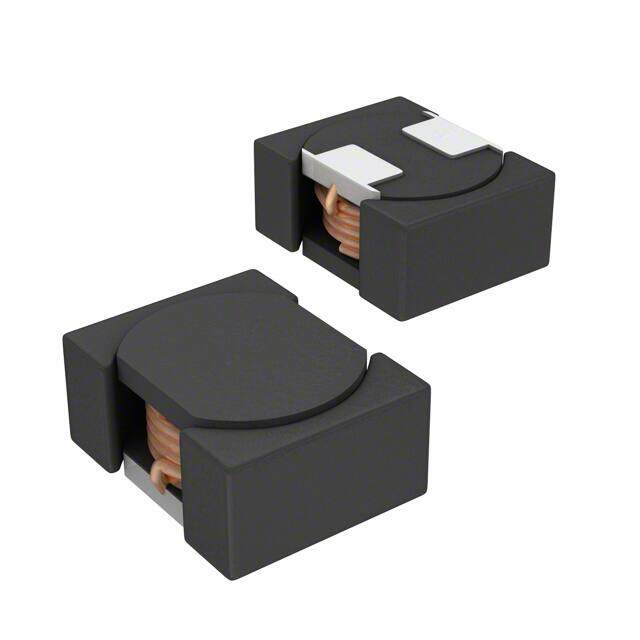

VLF252012MT-2R2M
RoHS
/
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
VLF-M 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 2.2muH
PDF
/
Inventory: 1263
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status EOL ANNOUNCED (Last Updated: 2 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2013
Series VLF-M
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±20%
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Current Rating 1.67A
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 2.2μH
Test Frequency 1MHz
DC Resistance (DCR) 100mOhm Max
Max DC Current 940mA
Inductance Tolerance 20%
RMS Current (Irms) 1.67A
Dimensions
Height 1.2mm
Height Seated (Max) 0.047 1.20mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
