HCMA1305-100-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
HCMA1305 Nonstandard 0.524Lx0.480W 13.30mmx12.20mm 10muH
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4256
≥1 USD $1.4256
≥10 USD $1.21352
≥100 USD $1.117952
≥500 USD $0.998976
≥1000 USD $0.83248
Inventory: 880
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series HCMA1305
Size / Dimension 0.524Lx0.480W 13.30mmx12.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Wirewound
Current Rating (Amps) 9A
Shielding Shielded
Depth 12.2mm
Current Rating 9A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 21.9mOhm Max
Max DC Current 16A
Inductance Frequency - Test 100kHz
Current - Saturation 16A
Dimensions
Height 5mm
Height Seated (Max) 0.197 5.00mm
Length 13.3096mm
Width 12.192mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Ratings AEC-Q200

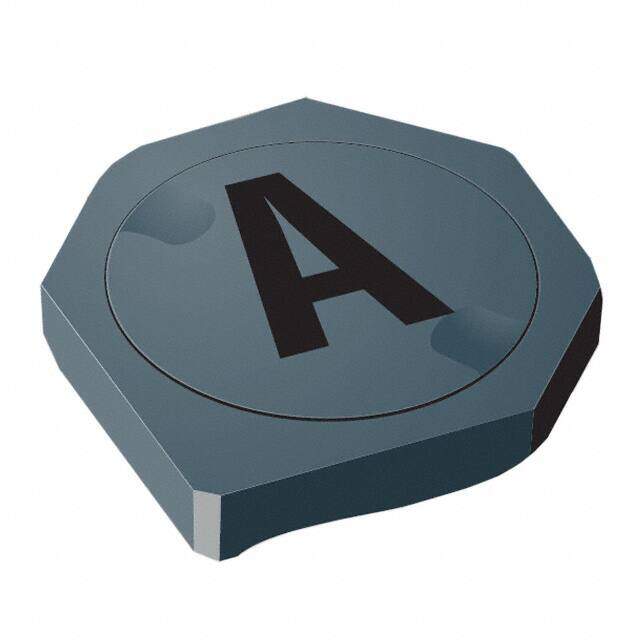

Alternative Model
