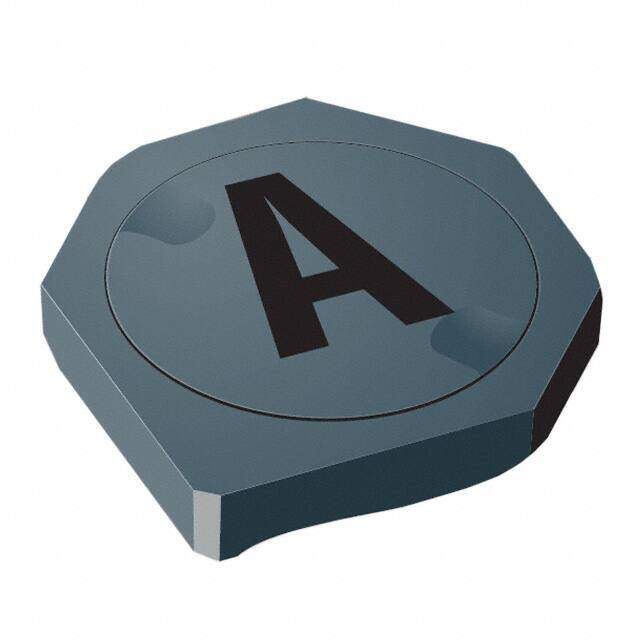

SRU3009-100Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU3009 Nonstandard 0.138Lx0.130W 3.50mmx3.30mm 10muH
PDF
/
Inventory: 2662
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series SRU3009
Size / Dimension 0.138Lx0.130W 3.50mmx3.30mm
Tolerance ±30%
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Wirewound
Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 2
Depth 3.5mm
Current Rating 280mA
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 760mOhm Max
Max DC Current 280mA
Frequency - Self Resonant 60MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Q @ Freq 8.5 @ 2.52MHz
Quality Factor-Min (at L-nom) 8
Current - Saturation 350mA
Case/Size Code 1413
Dimensions
Height 1.05mm
Height Seated (Max) 0.041 1.05mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
