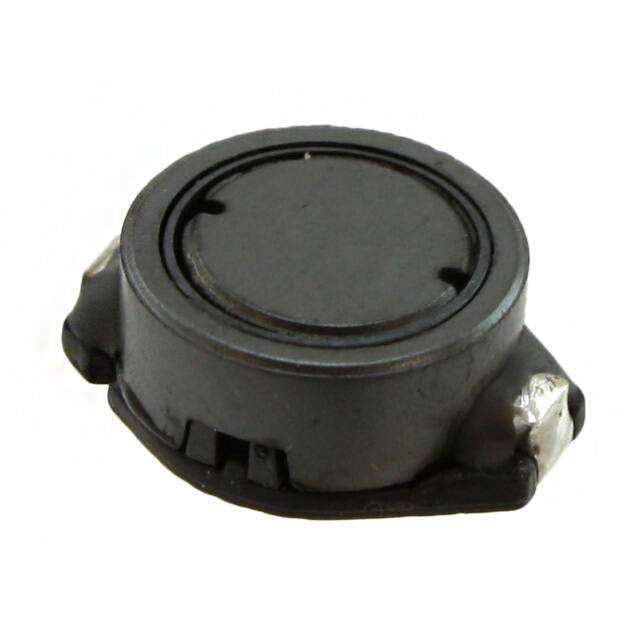

SRR1005-151K
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR1005 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 150muH
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.00294
≥1 USD $1.00294
≥10 USD $0.946172
≥100 USD $0.892613
≥500 USD $0.842092
≥1000 USD $0.794418
Inventory: 1201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Number of Pins 2
Material Steel
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SRR1005
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 520MOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR, EMBOSSED, 13 INCH
Shielding YES
Number of Functions 1
Depth 10.2mm
Construction Rectangular
Current Rating 550mA
Frequency 6.2MHz
Military Standard Not
Inductance 150μH
Test Frequency 1kHz
DC Resistance (DCR) 520mOhm Max
Max DC Current 550mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 28 @ 796kHz
Current - Saturation 660mA
Q Factor 28
Case/Size Code 5039
Inductance Tolerance 10%
DC Current 550mA
RMS Current (Irms) 550mA
Dimensions
Height 5.2mm
Height Seated (Max) 0.205 5.20mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
