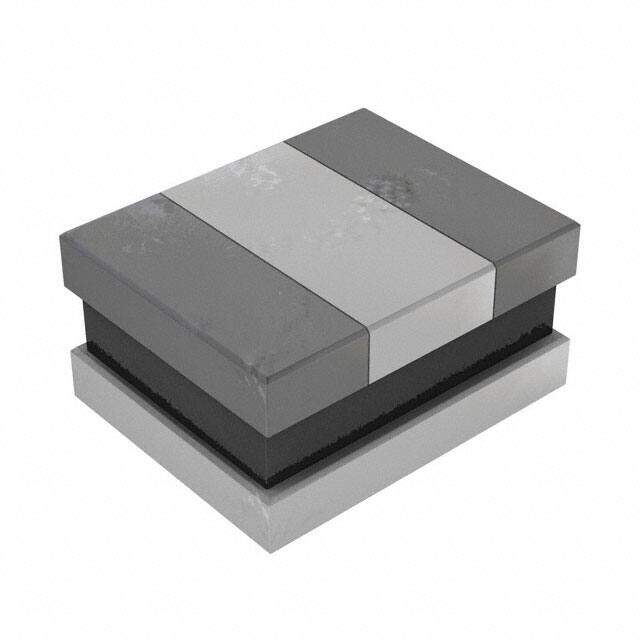

SRN2512-2R2M
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRN2512 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.14
Unit Price: USD $0.1444
≥1 USD $0.1444
≥10 USD $0.11875
≥100 USD $0.11495
≥500 USD $0.11115
≥1000 USD $0.10735
≥10000 USD $0.09595
Inventory: 1118
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.047 1.20mm
Height 1.2mm
Technical
RMS Current (Irms) 2.3A
Inductance Tolerance 20%
Current - Saturation 2.7A
Quality Factor-Min (at L-nom) 11
Q @ Freq 11 @ 1MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 80MHz
Max DC Current 2.3A
DC Resistance (DCR) 102mOhm Max
Test Frequency 1MHz
Inductance 2.2μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 2.3A
Construction Rectangular
Depth 2mm
Number of Functions 1
Shielding YES
Packing Method TR, 7 Inch
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series SRN2512
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 18 Weeks
