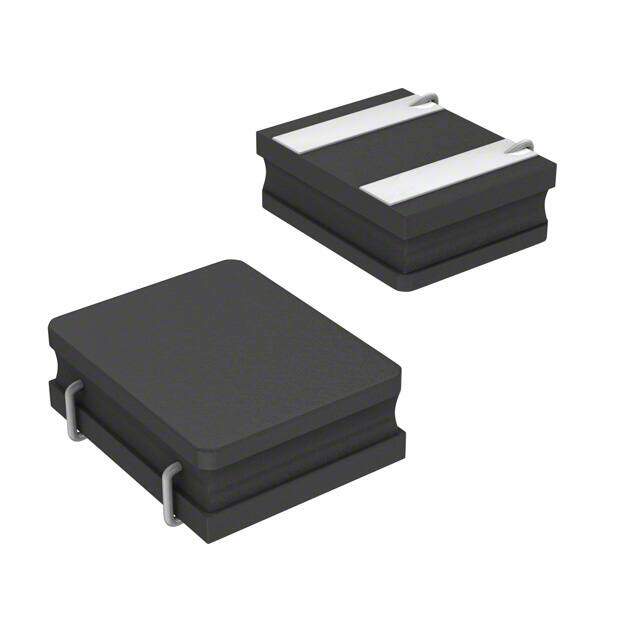

LQH2HPZ2R2MDRL
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LQH2 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.474542
≥1 USD $0.474542
≥10 USD $0.447681
≥100 USD $0.422334
≥500 USD $0.398428
≥1000 USD $0.375879
Inventory: 1183
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Physical
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Surface Mount YES
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series LQH2
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Wirewound
Current Rating (Amps) 820mA
Shielding YES
Number of Functions 1
Inductance 2.2μH
Test Frequency 1MHz
DC Resistance (DCR) 408mOhm Max
Frequency - Self Resonant 50MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 1MHz
Current - Saturation 850mA
Rated Current-Max 0.82A
Dimensions
Height Seated (Max) 0.024 0.60mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
