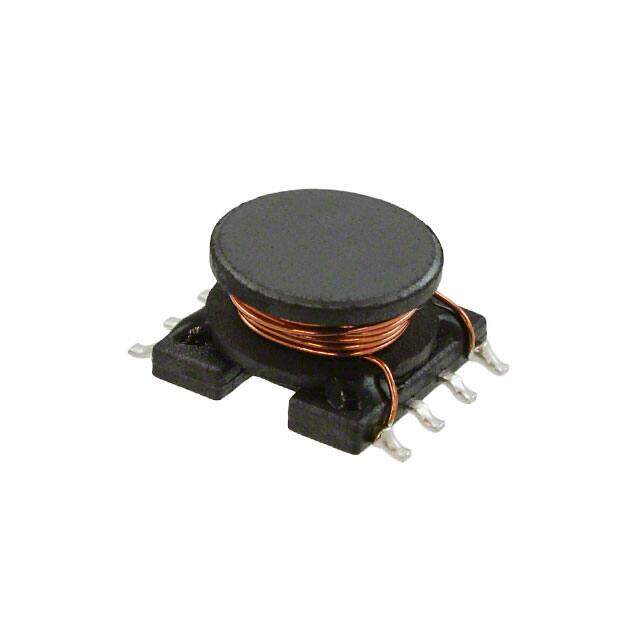

SDR0906-101KL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDR0906 Nonstandard 0.492Lx0.413W 12.50mmx10.50mm 100muH
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.7832
≥1 USD $0.7832
≥10 USD $0.66616
≥100 USD $0.60544
≥500 USD $0.569008
≥1000 USD $0.47212
≥3000 USD $0.435811
Inventory: 1193
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.248 6.30mm
Height 6.3mm
Technical
Special Feature Q MEASURED AT 0.796 MHZ
RMS Current (Irms) 900mA
DC Current 900mA
Inductance Tolerance 10%
Case/Size Code 4137
Q Factor 15
Current - Saturation 1.1A
Quality Factor-Min (at L-nom) 15
Q @ Freq 15 @ 796kHz
Terminal Placement DUAL IN-LINE
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 8MHz
Max DC Current 900mA
DC Resistance (DCR) 390mOhm Max
Test Frequency 1kHz
Inductance 100μH
Military Standard Not
Current Rating 900mA
Depth 13mm
Number of Functions 1
Shielding NO
Packing Method TR
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 0.492Lx0.413W 12.50mmx10.50mm
Series SDR0906
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 8
Terminal Shape GULL WING
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks

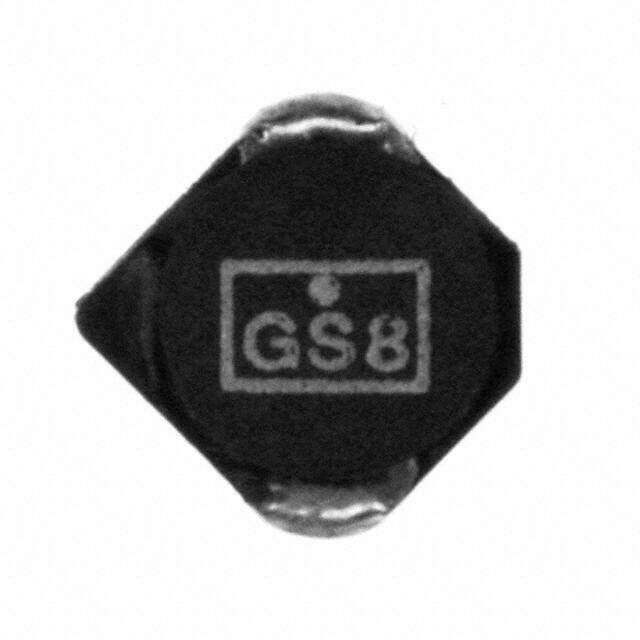

Alternative Model
