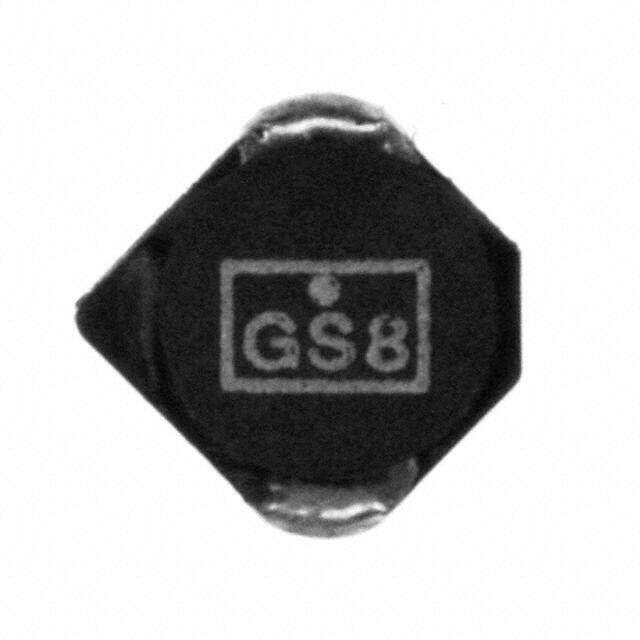

SD3814-101-R
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors 100uH 0.268A 3.048ohms
PDF
/
Inventory: 3507
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2007
Series SD38
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Tolerance ±15%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 228mA
Shielding Shielded
Inductance 100μH
DC Resistance (DCR) 3.048Ohm
Inductance Frequency - Test 100kHz
Current - Saturation 268mA
Dimensions
Height Seated (Max) 0.055 1.40mm
