LLSTR-100
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LLSTR Nonstandard 0.475Lx0.420W 12.07mmx10.67mm 100muH
PDF
/
Inventory: 9669
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Weight 2.000002g
Material - Core Iron
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2010
Series LLSTR
Size / Dimension 0.475Lx0.420W 12.07mmx10.67mm
Tolerance ±15%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 11.17mm
Construction Rectangular
Current Rating 1A
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 250mOhm Max
Max DC Current 1A
Frequency - Self Resonant 7MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 800mA
Case/Size Code 4842
Dimensions
Height 7.37mm
Height Seated (Max) 0.290 7.37mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

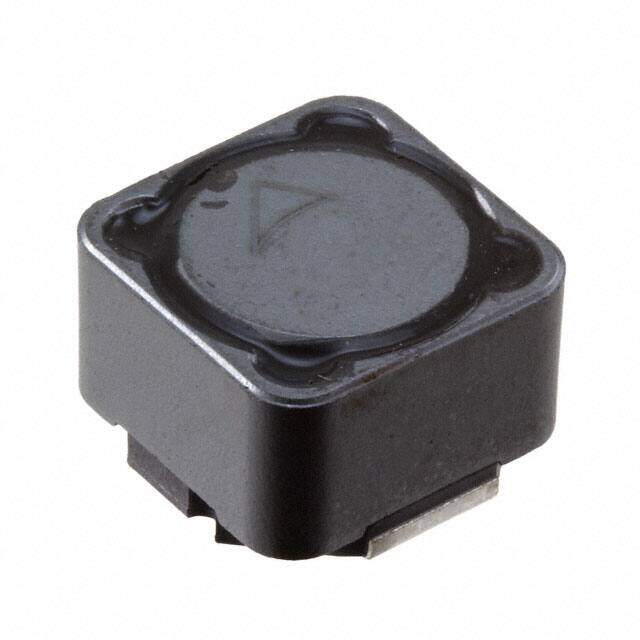

Alternative Model
