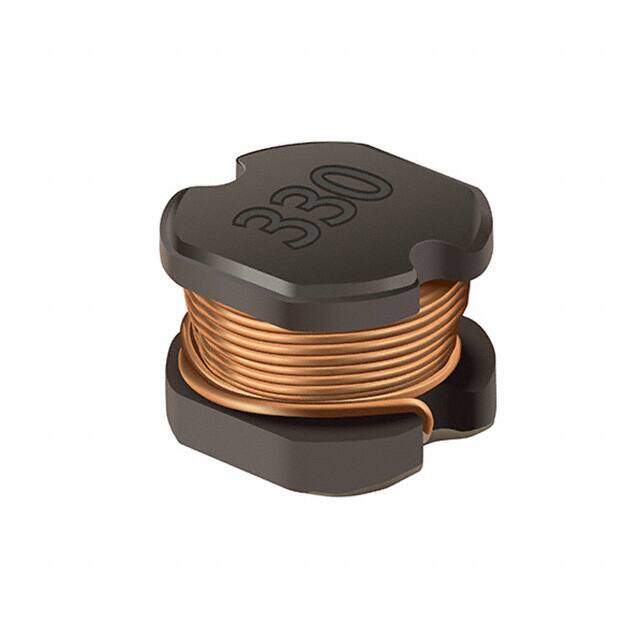

SDE0403A-680K
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDE0403A Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 68muH
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.43384
≥100 USD $0.397408
≥500 USD $0.361328
≥1000 USD $0.321552
≥3000 USD $0.303494
Inventory: 703
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.138 3.50mm
Technical
RMS Current (Irms) 400mA
Inductance Tolerance 10%
Rated Current-Max 0.4A
Case/Size Code 1816
Current - Saturation 550mA
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 13MHz
DC Resistance (DCR) 1.028Ohm Max
Test Frequency 1MHz
Inductance 68μH
Current Rating 400mA
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series SDE0403A
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
