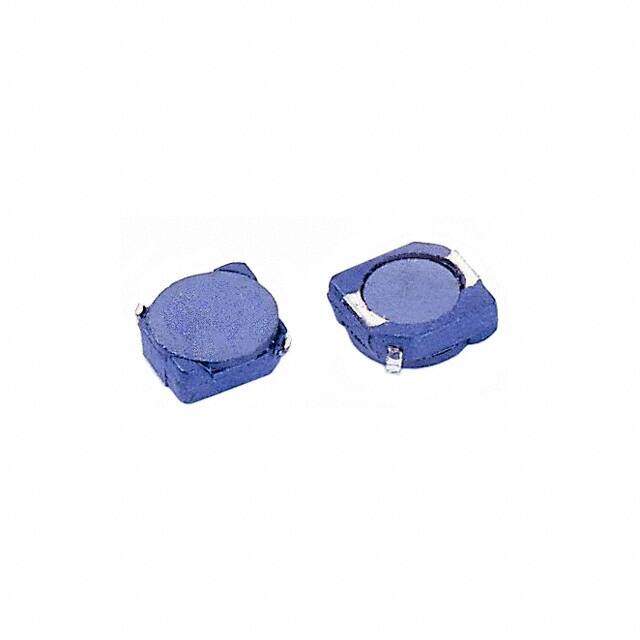

3630F680MT image
Favorite
3630F680MT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 3630Sigma Inductors Nonstandard 0.720Lx0.551W 18.30mmx14.00mm 68muH
PDF
/
Inventory: 4363
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.280 7.10mm

Technical

Rated Current-Max 1.6A
Current - Saturation 3.4A
Inductance Frequency - Test 2.5MHz
Quality Factor-Min (at L-nom) 37
Q @ Freq 37 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 6MHz
DC Resistance (DCR) 200mOhm Max
Inductance 68μH
Number of Functions 1
Shielding Shielded
Current Rating (Amps) 1.6A
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.720Lx0.551W 18.30mmx14.00mm
Series 3630, Sigma Inductors
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -25°C~105°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 37 Weeks
