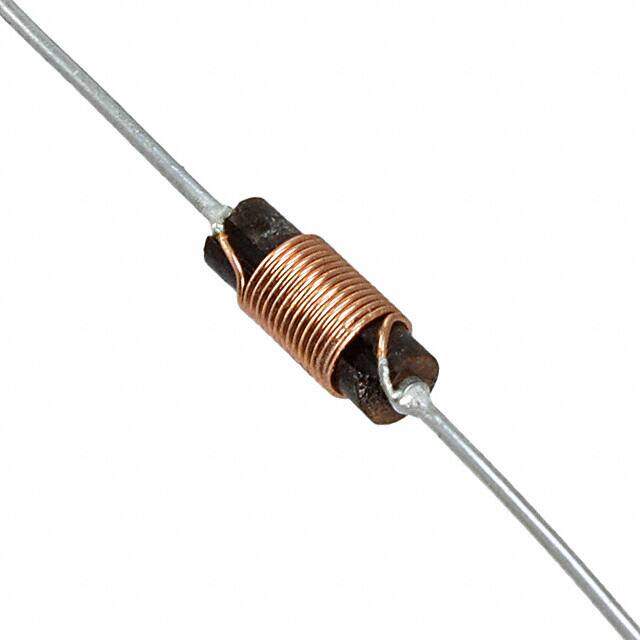

70F337AP-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
70F Axial 0.120Diax0.310L 3.05mmx7.87mm 330nH
PDF
/
Inventory: 1338
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Supplier Device Package Axial
Material - Core Phenolic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2002
Series 70F
Size / Dimension 0.120Diax0.310L 3.05mmx7.87mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Axial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Wirewound
Current Rating (Amps) 1.69A
Shielding Unshielded
Current Rating 1.69A
Base Part Number 70F
Inductance 330nH
Test Frequency 25MHz
DC Resistance (DCR) 700mOhm Max
Max DC Current 1.69A
Frequency - Self Resonant 330MHz
Q @ Freq 47 @ 25MHz
Lead/Base Style Axial
Inductance Frequency - Test 25MHz
Q Factor 47
Inductance Tolerance 20%
Dimensions
Diameter 3.048mm
Length 7.874mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
