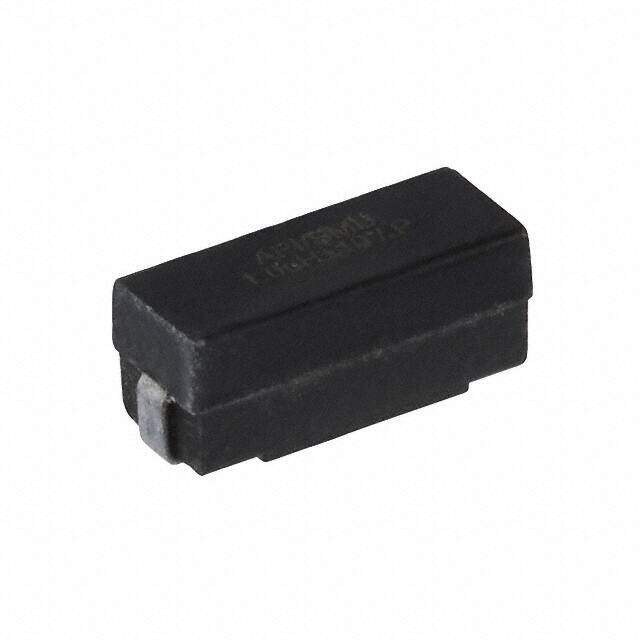

P1330R-223K image
Favorite
P1330R-223K image
Favorite

P1330R-223K

API Delevan Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description P1330R Nonstandard 0.313Lx0.115W 7.94mmx2.92mm 22muH
PDF
/
Buying Options
Total Price: USD $2.58
Unit Price: USD $2.5784
≥1 USD $2.5784
≥10 USD $2.15688
≥100 USD $1.969088
≥500 USD $1.68784
≥1000 USD $1.547216
≥3000 USD $1.500294
Inventory: 803
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.145 3.68mm
Height 3.68mm

Technical

Case/Size Code 3313
Current - Saturation 348mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 694mA
DC Resistance (DCR) 384mOhm Max
Test Frequency 1kHz
Inductance 22μH
Current Rating 694mA
Construction Rectangular
Depth 3.18mm
Number of Functions 1
Shielding NO
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 0.313Lx0.115W 7.94mmx2.92mm
Series P1330R
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
