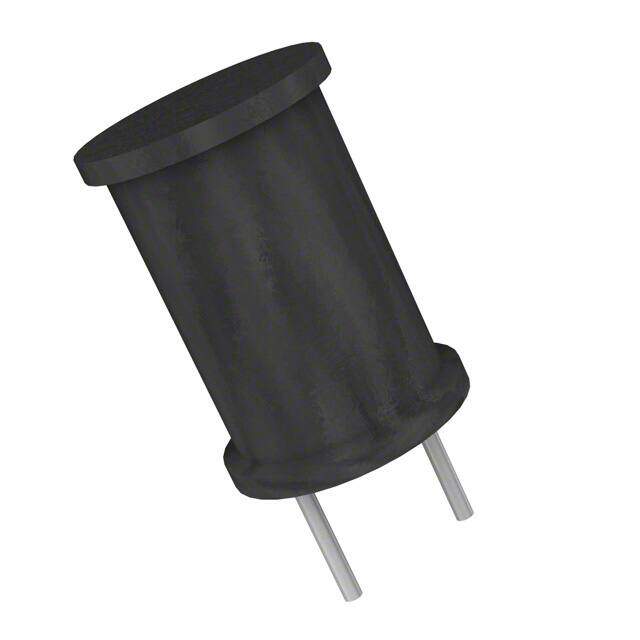

AIUR-11-331K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIUR-11 Radial Vertical Cylinder 0.375Dia 9.53mm 330muH
PDF
/
Inventory: 1601
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2007
Series AIUR-11
Size / Dimension 0.375Dia 9.53mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 490mA
Lead Pitch 5mm
Lead Diameter 810 μm
Inductance 330μH
Test Frequency 1kHz
DC Resistance (DCR) 635mOhm Max
Max DC Current 700mA
Inductor Application POWER INDUCTOR
Lead/Base Style Radial
Dimensions
Height 11.4mm
Height Seated (Max) 0.450 11.43mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
