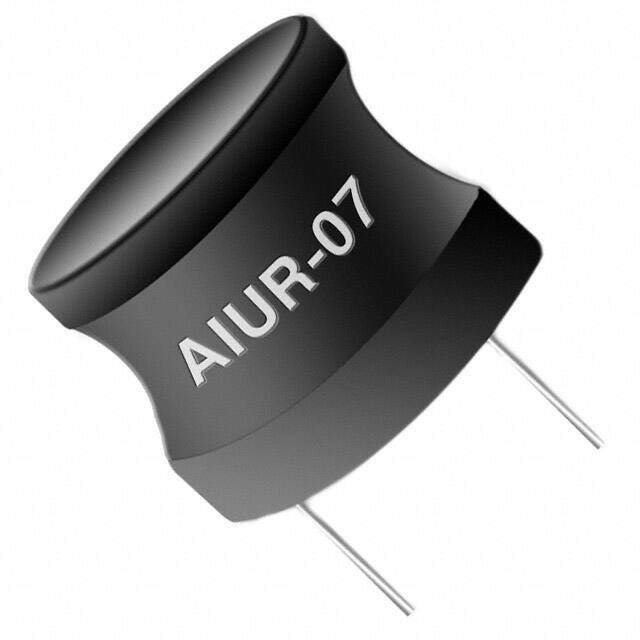

AIUR-07-331K image
Favorite
AIUR-07-331K image
Favorite

AIUR-07-331K

Abracon LLC
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description AIUR-07 Radial Vertical Cylinder 0.236Dia 6.00mm 330muH
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.641719
≥1 USD $0.641719
≥10 USD $0.605391
≥100 USD $0.571134
≥500 USD $0.538795
≥1000 USD $0.508306
Inventory: 1246
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.201 5.10mm
Height 5.1mm

Technical

Quality Factor-Min (at L-nom) 55
Lead/Base Style Radial
Q @ Freq 55 @ 1kHz
Inductor Application POWER INDUCTOR
Max DC Current 300mA
DC Resistance (DCR) 2.2Ohm Max
Test Frequency 1kHz
Inductance 330μH
Lead Diameter 500 μm
Lead Pitch 4mm
Current Rating 210mA
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±10%
Size / Dimension 0.236Dia 6.00mm
Series AIUR-07
Published 2007
Packaging Bulk
Operating Temperature -55°C~85°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 8 Weeks
