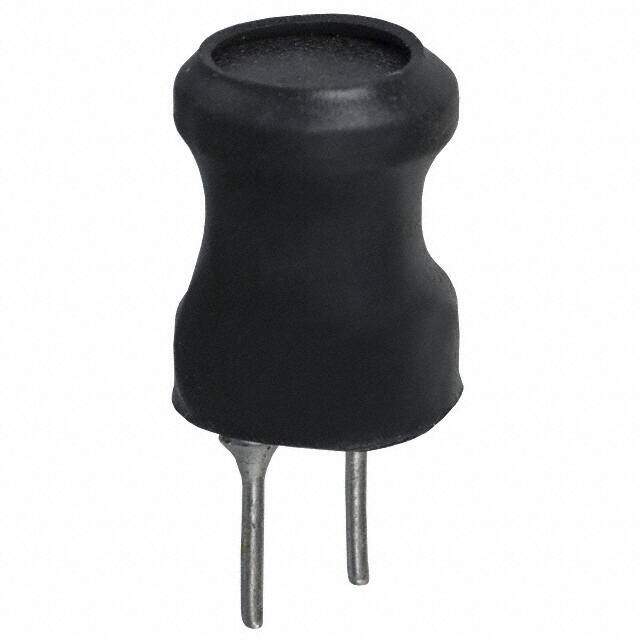

RL622-331K-RC
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RL622 Radial Vertical Cylinder 0.335Dia 8.50mm 330muH
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.9328
≥1 USD $0.9328
≥10 USD $0.78848
≥100 USD $0.559328
≥500 USD $0.444567
≥1000 USD $0.415879
≥3000 USD $0.401544
Inventory: 1154
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.433 11.00mm
Height 11mm
Diameter 8.5mm
Technical
RMS Current (Irms) 540mA
DC Current 540mA
Inductance Tolerance 10%
Q Factor 20
Quality Factor-Min (at L-nom) 20
Lead/Base Style Radial
Q @ Freq 20 @ 796kHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 2.3MHz
Max DC Current 540mA
DC Resistance (DCR) 850mOhm Max
Test Frequency 796kHz
Inductance 330μH
Lead Diameter 620 μm
Lead Length 5mm
Lead Pitch 5mm
Military Standard Not
Current Rating 540mA
Construction Cylindrical
Number of Functions 1
Shielding NO
Orientation Vertical
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn)
Resistance 850mOhm
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.335Dia 8.50mm
Series RL622
Published 2007
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 18 Weeks
