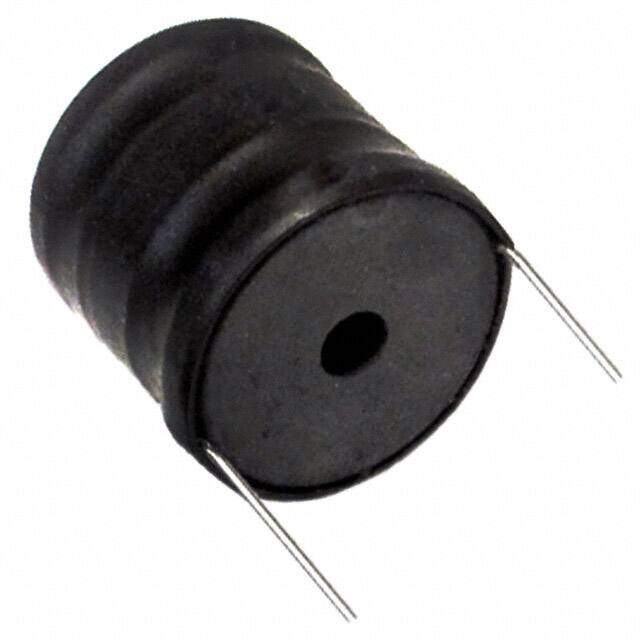

AIRD-03-391K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIRD-03 Radial Vertical Cylinder 1.102Dia 28.00mm 390muH
PDF
/
Buying Options
Total Price: USD $4.87
Unit Price: USD $4.8664
≥1 USD $4.8664
≥10 USD $3.183664
≥100 USD $2.918344
≥500 USD $2.564637
Inventory: 170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series AIRD-03
Size / Dimension 1.102Dia 28.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Current Rating (Amps) 4A
Shielding Unshielded
Current Rating 4A
Lead Pitch 22mm
Inductance 390μH
Test Frequency 1Hz
DC Resistance (DCR) 169mOhm Max
Max DC Current 6.7A
Lead/Base Style Radial
Inductance Frequency - Test 1Hz
Current - Saturation 6.7A
Dimensions
Diameter 28mm
Height 21.0058mm
Height Seated (Max) 0.827 21.00mm
Length 21mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
