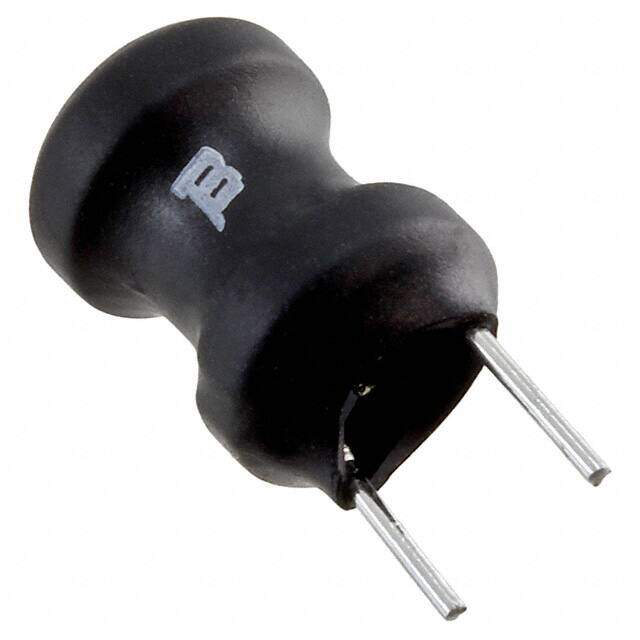

PT12117SL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PT121 Radial Vertical Cylinder 0.400Dia 10.15mm 390muH
PDF
/
Inventory: 8275
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2010
Series PT121
Size / Dimension 0.400Dia 10.15mm
Tolerance ±10%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
Resistance 4Ohm
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 200mA
Military Standard Not
Lead Pitch 5mm
Inductance 390μH
Test Frequency 796kHz
DC Resistance (DCR) 4Ohm Max
Max DC Current 200mA
Frequency - Self Resonant 2.1MHz
Q @ Freq 80 @ 796kHz
Lead/Base Style Radial
DC Current 200mA
Dimensions
Height 12.7mm
Height Seated (Max) 0.500 12.70mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

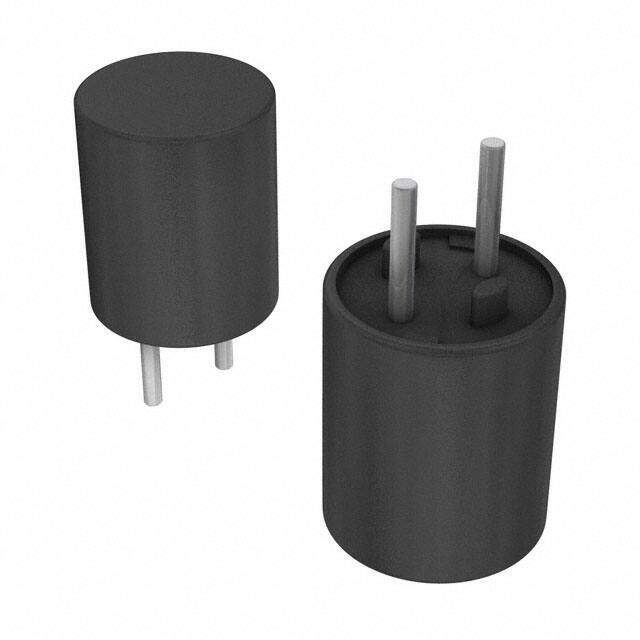

Alternative Model
