Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors

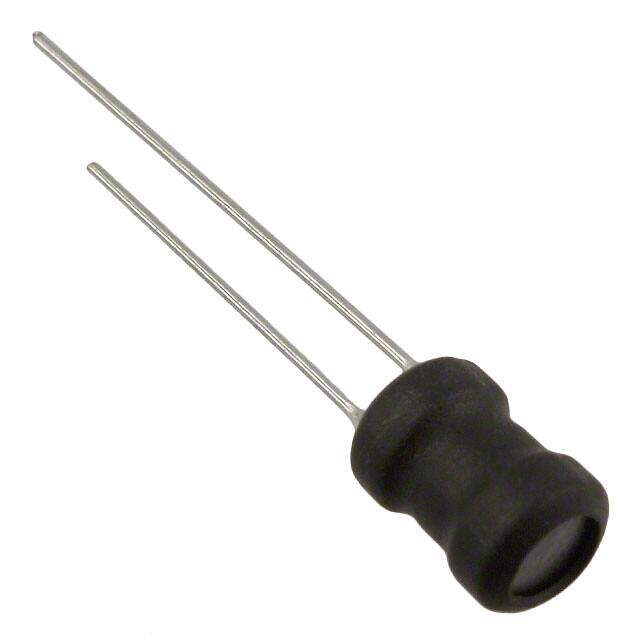

Description 18E-L Radial Vertical Cylinder 0.748Dia 19.00mm 390muH
PDF
/
Inventory: 5017
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.988 25.10mm
Height 25.0952mm

Technical

Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
RMS Current (Irms) 1.8A
Inductance Tolerance 10%
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 1.8A
Current 1.4A
DC Resistance (DCR) 120mOhm
Test Frequency 10kHz
Inductance 390μH
Lead Diameter 0.8 mm
Lead Length 3.5mm
Operating Temperature (Min) -20°C
Operating Temperature (Max) 105°C
Lead Pitch 11.3mm
Current Rating 1.8A
Construction Cylindrical
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.748Dia 19.00mm
Series 18E-L
Packaging Bulk

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 17 Weeks
