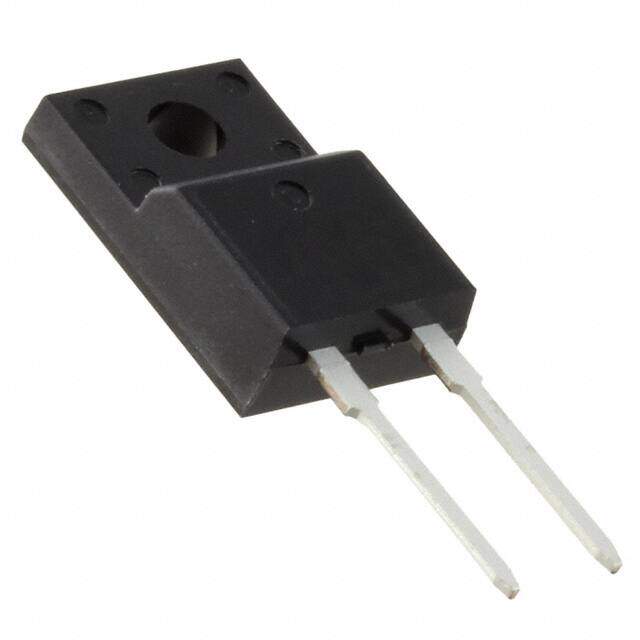

DFE10I600PM
RoHS
RoHS compliant
RoHS compliantPackage TO-220-2 Full Pack, Isolated Tab
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 10A TO220FP
PDF
/
Buying Options
Total Price: USD $13.27
Unit Price: USD $13.27435
≥1 USD $13.27435
≥10 USD $10.89175
≥100 USD $10.55165
≥500 USD $10.2106
≥1000 USD $9.8705
Inventory: 1504
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Recovery Time 35 ns
Reverse Voltage 600V
Peak Non-Repetitive Surge Current 100A
Peak Reverse Current 20μA
Reverse Recovery Time 35 ns
Number of Phases 1
Average Rectified Current 10A
Max Reverse Voltage (DC) 600V
Forward Voltage 1.8V
Application POWER
Max Surge Current 100A
Operating Temperature - Junction -55°C~150°C
Voltage - Forward (Vf) (Max) @ If 1.5V @ 10A
Current - Reverse Leakage @ Vr 20μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Pin Count 3
Technology AVALANCHE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature LOW LEAKAGE CURRENT, SNUBBER DIODE, FREE WHEELING DIODE
Min Operating Temperature -55°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2007
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case TO-220-2 Full Pack, Isolated Tab
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 28 Weeks
