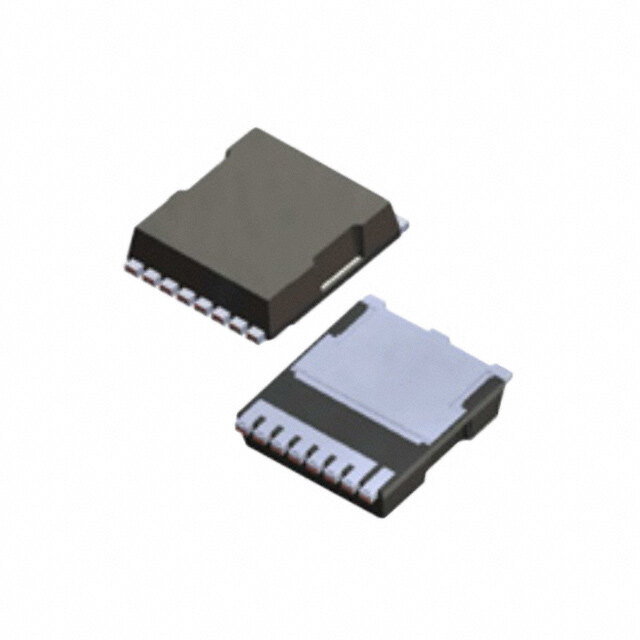

FDBL0120N40
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerSFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 40V 240A H-PSOF8
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.10675
≥1 USD $1.10675
≥10 USD $0.9082
≥100 USD $0.8797
≥500 USD $0.8512
≥1000 USD $0.8227
Inventory: 1141
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Continuous Drain Current (ID) 240A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 40V
Gate Charge (Qg) (Max) @ Vgs 107nC @ 10V
Current - Continuous Drain (Id) @ 25°C 240A Tc
Input Capacitance (Ciss) (Max) @ Vds 7735pF @ 25V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 1.2m Ω @ 80A, 10V
FET Type N-Channel
Element Configuration Single
Power Dissipation-Max 300W Tj
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) 245
Technology MOSFET (Metal Oxide)
Terminal Finish Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series PowerTrench?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~175°C TJ
Physical
Weight 850.0521mg
Number of Pins 8
Package / Case 8-PowerSFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 8 Weeks
