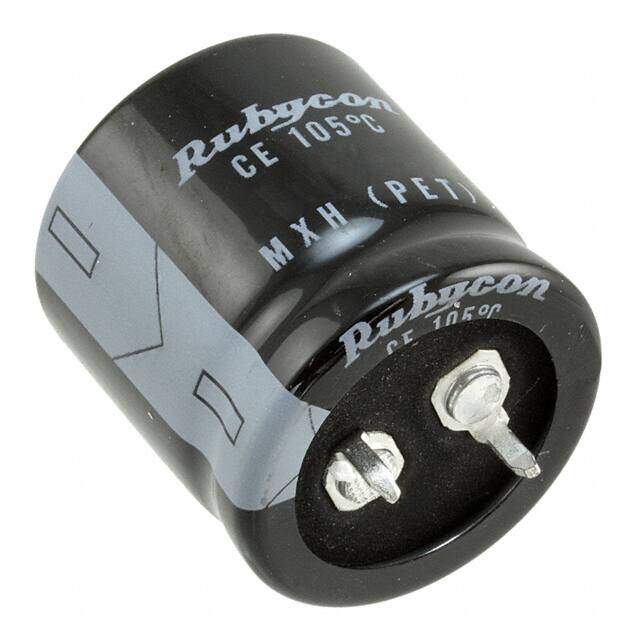

450MXH120MEFCSN25X25
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
MXH ALUMINUM ELECTROLYTIC CAPACITOR Radial Can - Snap-In aluminum electrolytic capacitor 0.984Dia 25.00mm ±20% 120muF 450V
PDF
/
Buying Options
Total Price: USD $4.38
Unit Price: USD $4.379424
≥1 USD $4.379424
≥10 USD $4.131538
≥100 USD $3.89767
≥500 USD $3.677048
≥1000 USD $3.468918
Inventory: 9251
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2015
Series MXH
Size / Dimension 0.984Dia 25.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 450V
Capacitance 120μF
Packing Method Box
Terminal Pitch 10mm
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Rated (DC) Voltage (URdc) 450V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.69714mA
Ripple Current 720mA
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.2
Ripple Current @ Low Frequency 960mA @ 120Hz
Ripple Current @ High Frequency 1.344A @ 10kHz
Dimensions
Diameter 25mm
Height Seated (Max) 1.063 27.00mm
Length 25mm
Compliance
RoHS Status ROHS3 Compliant
