450KXF120MEFCSN30X20
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description

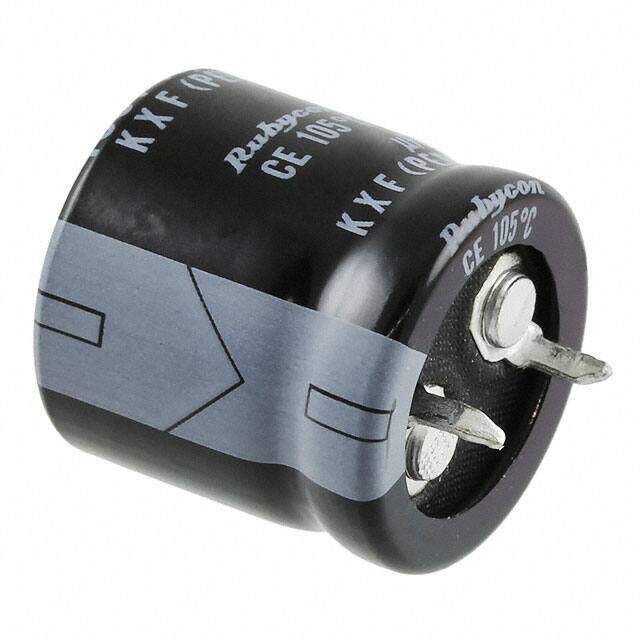

KXF ALUMINUM ELECTROLYTIC CAPACITOR Radial Can - Snap-In aluminum electrolytic capacitor 1.181Dia 30.00mm ±20% 120muF 450V
PDF
/
Inventory: 6726
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2012
Series KXF
Size / Dimension 1.181Dia 30.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 120μF
Voltage - Rated DC 450V
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 3000 Hrs @ 105°C
Leakage Current 0.69714mA
Ripple Current 700mA
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.2
Ripple Current @ Low Frequency 700mA @ 120Hz
Ripple Current @ High Frequency 980mA @ 10kHz
Dimensions
Diameter 30mm
Height 20mm
Height Seated (Max) 0.866 22.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
