16YXH680MEFCT78X20
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

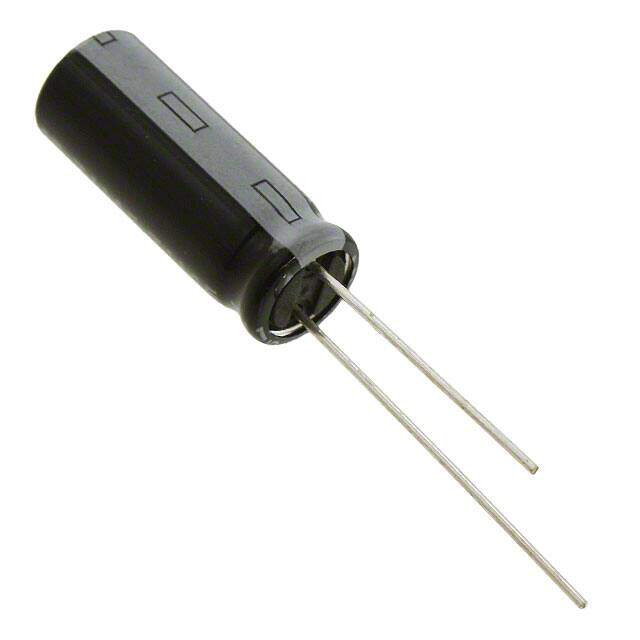

YXH Radial Can aluminum electrolytic capacitor 0.315Dia 8.00mm ±20% 680muF 16V
PDF
/
Inventory: 2180
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Box (TB)
Published 2015
Series YXH
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Applications General Purpose
Voltage - Rated 16V
Capacitance 680μF
Lead Pitch 3.5052mm
Lead Spacing 0.138 3.50mm
Lifetime @ Temp 7000 Hrs @ 105°C
Ripple Current 577.5mA
Polarization Polar
Life (Hours) 7000 hours
Impedance 69mOhm
Ripple Current @ Low Frequency 577.5mA @ 120Hz
Ripple Current @ High Frequency 1.05A @ 100kHz
Dimensions
Height Seated (Max) 0.866 22.00mm
Compliance
RoHS Status ROHS3 Compliant
