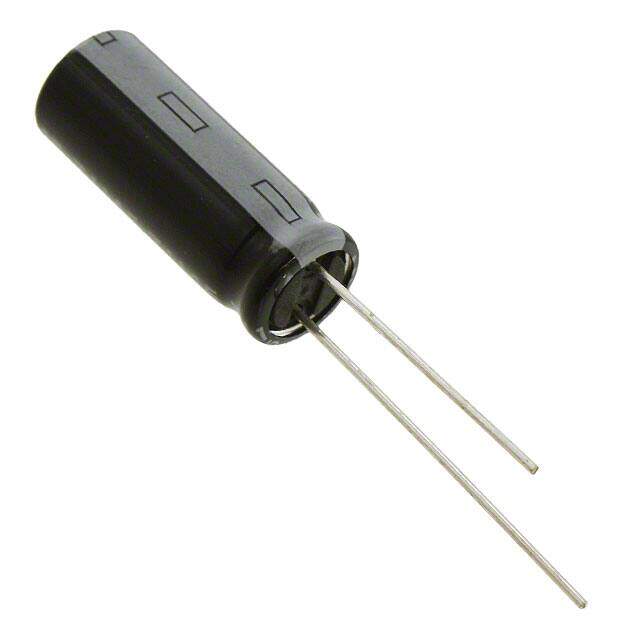

16YXG680MEFCT78X20
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
YXG ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.315Dia 8.00mm ±20% 680muF 16V
PDF
/
Inventory: 5399
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Life (Hours) 4000 hours
Tan Delta 0.16
Impedance 69mOhm
Ripple Current @ Low Frequency 577.5mA @ 120Hz
Ripple Current @ High Frequency 1.05A @ 100kHz
Polarization Polar
Ripple Current 577.5mA
Leakage Current 0.1088mA
Lifetime @ Temp 4000 Hrs @ 105°C
Rated (DC) Voltage (URdc) 16V
Lead Spacing 0.138 3.50mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 3.5052mm
Terminal Pitch 3.5mm
Capacitance 680μF
Voltage - Rated 16V
Applications General Purpose
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series YXG
Published 2015
Packaging Tape & Box (TB)
Operating Temperature -40°C~105°C
Dimensions
Diameter 8mm
Height Seated (Max) 0.866 22.00mm
Length 20mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Dielectric Material ALUMINUM (WET)
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
