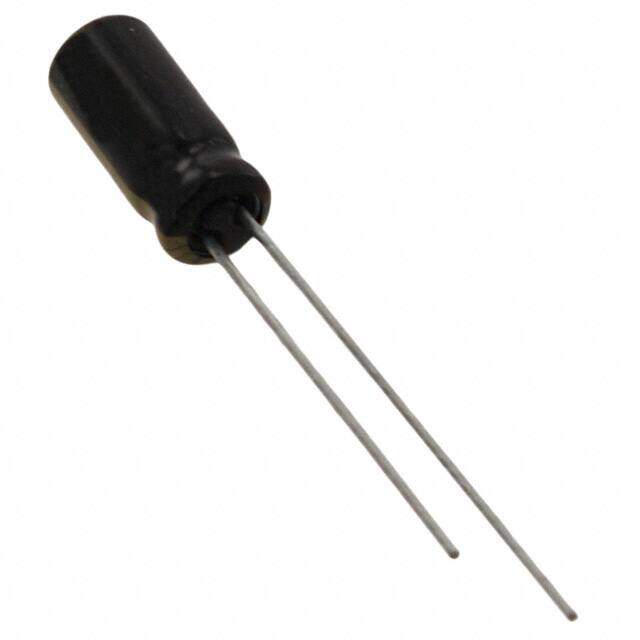

EEU-FM1A101
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR FM 10V 100muF ±20% 0.197Dia 5.00mm
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.17688
≥100 USD $0.105908
≥500 USD $0.070611
≥1000 USD $0.063175
≥3000 USD $0.059462
Inventory: 1357
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Tin
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2006
Series FM
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
Capacitance 100μF
Voltage - Rated DC 10V
Lead Pitch 2mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Length 17mm
ESR (Equivalent Series Resistance) 300mOhm
Lead Spacing 0.079 2.00mm
Lead Diameter 500 μm
Voltage 10V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 10nA
Ripple Current 280mA
Polarization Polar
Life (Hours) 2000 hours
Impedance 300mOhm
Ripple Current @ Low Frequency 196mA @ 120Hz
Ripple Current @ High Frequency 280mA @ 100kHz
Dissipation Factor 0.19 %
Outside Diameter 5 mm
Ripple Current (AC) 280mA
Dimensions
Diameter 5mm
Height 11mm
Height Seated (Max) 0.492 12.50mm
Compliance
Radiation Hardening No
REACH SVHC Yes
RoHS Status RoHS Compliant
Lead Free Lead Free

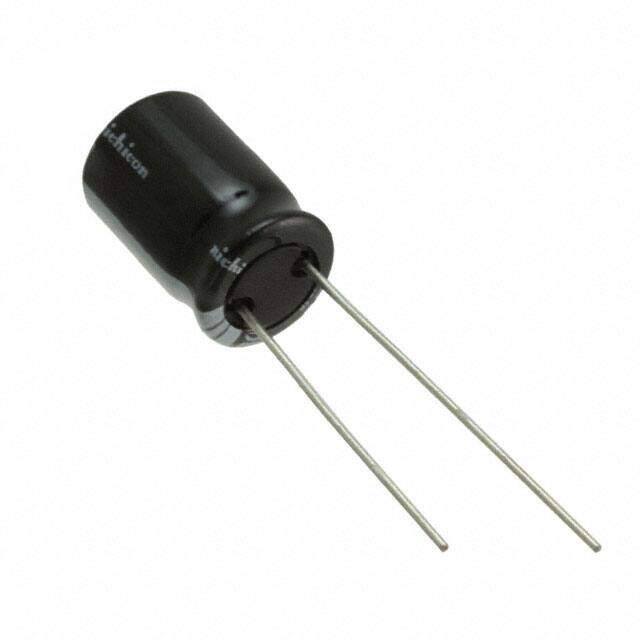

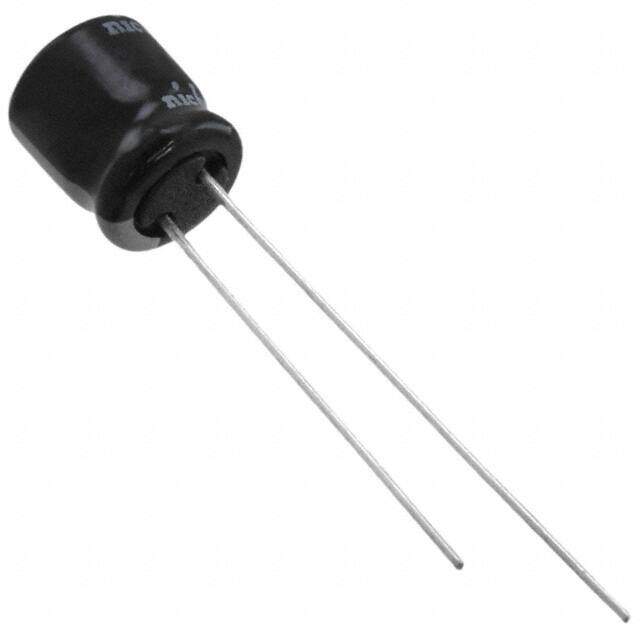

Alternative Model
