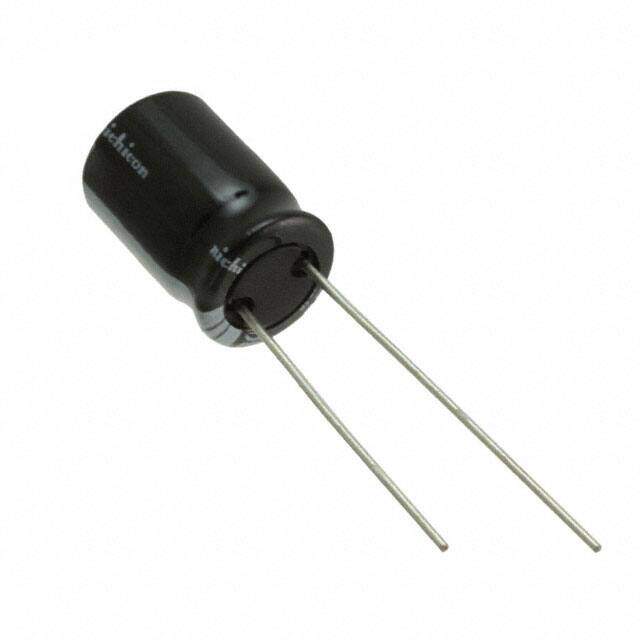

UHD1A101MDD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UHD 10V 100muF ±20% 0.197Dia 5.00mm
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.18304
≥100 USD $0.128304
≥500 USD $0.103664
Inventory: 342
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.492 12.50mm
Height 11mm
Diameter 5mm
Technical
Ripple Current (AC) 250mA
Dissipation Factor 0.19 %
Ripple Current @ High Frequency 250mA @ 100kHz
Ripple Current @ Low Frequency 175mA @ 120Hz
Impedance 300mOhm
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 250mA
Leakage Current 10μA
Lifetime @ Temp 2000 Hrs @ 105°C
Lead Diameter 500 μm
Lead Spacing 0.079 2.00mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 2mm
Packing Method TAPE
Voltage - Rated DC 10V
Capacitance 100μF
Applications General Purpose
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.197Dia 5.00mm
Series UHD
Published 2009
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Dielectric Material Aluminium
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 19 Weeks
