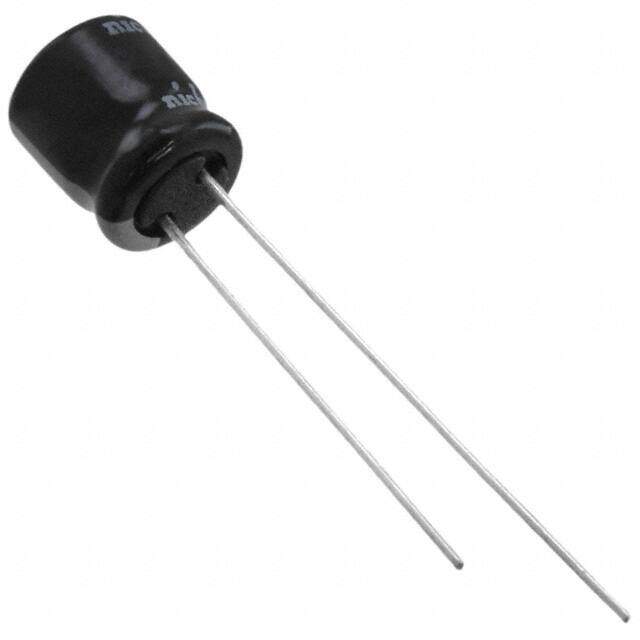

USV1A101MFD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR USV 10V 100muF ±20% 0.315Dia 8.00mm
PDF
/
Inventory: 6125
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2009
Series USV
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 100μF
Voltage - Rated DC 10V
Lead Pitch 3.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.138 3.50mm
Lead Diameter 500 μm
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 10μA
Ripple Current 96mA
Polarization Polar
Life (Hours) 5000 hours
Ripple Current @ Low Frequency 96mA @ 120Hz
Ripple Current @ High Frequency 144mA @ 10kHz
Dissipation Factor 0.21 %
Dimensions
Diameter 8mm
Height 7mm
Height Seated (Max) 0.315 8.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
