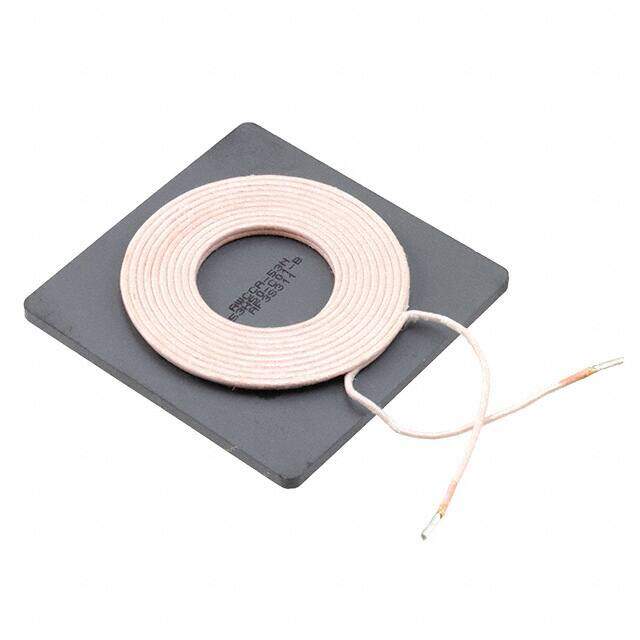

AWCCA-50N50H35-C01-B
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Inductors, Coils, Chokes / Wireless Charging Coils
Description
AWCCA-50N50 Radial 1.96Lx1.96W x 0.13H 50.0mmx50.0mmx3.5mm 24muH
PDF
/
Buying Options
Total Price: USD $9.85
Unit Price: USD $9.852002
≥1 USD $9.852002
≥200 USD $3.930823
≥496 USD $3.799533
≥1000 USD $3.735201
Inventory: 4822
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Box
Package / Case Radial
Technical
Operating Temperature -25°C~85°C
Packaging Box
Published 2011
Series AWCCA-50N50
Size / Dimension 1.96Lx1.96W x 0.13 H 50.0mmx50.0mmx3.5mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type 1 Coil, 1 Layer
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Current Rating (Amps) 5.4A
Shielding Shielded
Depth 4mm
Current Rating 5.4A
Military Standard Not
Function Receiver, Transmitter
Inductance 24μH
Test Frequency 100kHz
DC Resistance (DCR) 72mOhm
Frequency - Self Resonant 3MHz
Q @ Freq 160 @ 100kHz
Lead/Base Style Radial
Logic Function Receiver
Current - Saturation 21A
Q Factor 160
Number of Turns 20
Inductance Tolerance 10%
Number of Coils 1
Dimensions
Height 3.5mm
Length 50mm
Width 49.784mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
