AWCCA-53N53H50-C01-B
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Inductors, Coils, Chokes / Wireless Charging Coils
Description

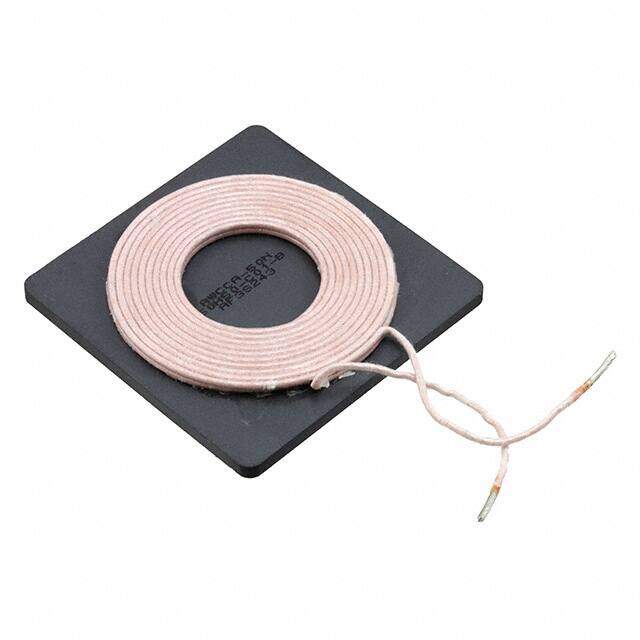

AWCCA-53N53 Radial 2.08Lx2.08W x 0.19H 53.0mmx53.0mmx5.0mm 24muH
PDF
/
Inventory: 3318
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Box
Package / Case Radial
Technical
Operating Temperature -25°C~85°C
Packaging Box
Published 2011
Series AWCCA-53N53
Size / Dimension 2.08Lx2.08W x 0.19 H 53.0mmx53.0mmx5.0mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type 1 Coil, 1 Layer
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Current Rating (Amps) 5.7A
Shielding Shielded
Depth 5.5mm
Current Rating 5.7A
Military Standard Not
Function Receiver, Transmitter
Inductance 24μH
Test Frequency 100kHz
DC Resistance (DCR) 72mOhm
Frequency - Self Resonant 2.8MHz
Q @ Freq 170 @ 100kHz
Lead/Base Style Radial
Logic Function Receiver
Current - Saturation 30A
Q Factor 170
Number of Turns 20
Inductance Tolerance 10%
Number of Coils 1
Dimensions
Height 4.826mm
Length 53mm
Width 53mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
