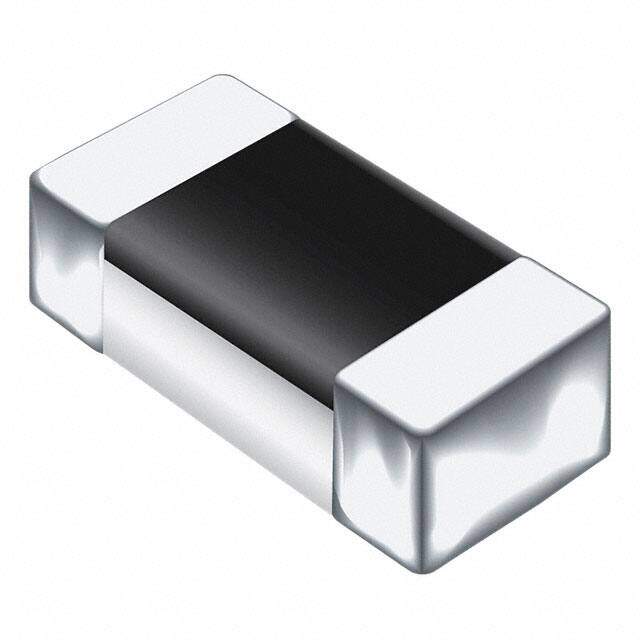

CGA0603MLA-17300E
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Circuit Protection / TVS - Varistors, MOVs
Description
Var 14VAC 17VDC 2A 34.4V 0603 SMD Paper T/R
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.335283
≥1 USD $0.335283
≥10 USD $0.316306
≥100 USD $0.298403
≥500 USD $0.281509
≥1000 USD $0.26558
Inventory: 1092
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount, MLCV
Package / Case 0603 (1608 Metric)
Technical
Operating Temperature -55°C~125°C TA
Packaging Tape & Reel (TR)
Published 2014
Series ChipGuard? MLA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Capacitance 30pF
Base Part Number CGA0603
Number of Circuits 1
Max Voltage Rating (AC) 14V
Max Voltage Rating (DC) 17V
Lead/Base Style Wraparound
Max Surge Current 2A
Capacitance @ Frequency 30pF @ 1kHz
Varistor Voltage (Max) 34.4V
Energy 0.05J
Varistor Voltage (Min) 21.6V
Varistor Voltage (Typ) 28V
Maximum AC Volts 14V
ESD Protection Yes
Varistor Voltage 28V
Clamping Current 1A
Dimensions
Length 1.6mm
Compliance
RoHS Status ROHS3 Compliant
