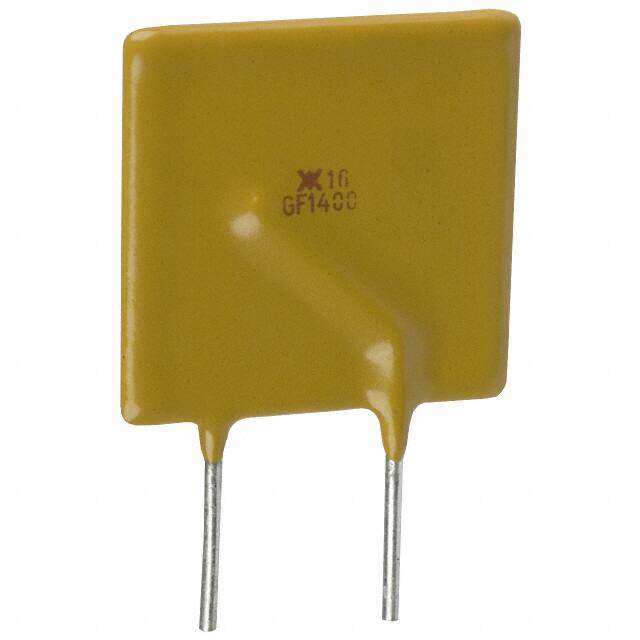

RGE1400
RoHS
/
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 16V 14A RADIAL
PDF
/
Inventory: 1219
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial, Disc
Technical
Packaging Bulk
Series PolySwitch?
Size / Dimension 0.904Lx0.114W 22.96mmx2.90mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Polymeric
Approval Agency CSA, TUV, UL
Lead Spacing 0.400 10.15mm
Current - Max 100A
Current - Hold (Ih) (Max) 14A
Voltage - Max 16V
Time to Trip 9s
Resistance - Initial (Ri) (Min) 2.6mOhm
Resistance - Post Trip (R1) (Max) 6.4mOhm
Current - Trip (It) 23.8A
Dimensions
Height Seated (Max) 1.102 28.00mm
Compliance
RoHS Status Non-RoHS Compliant
