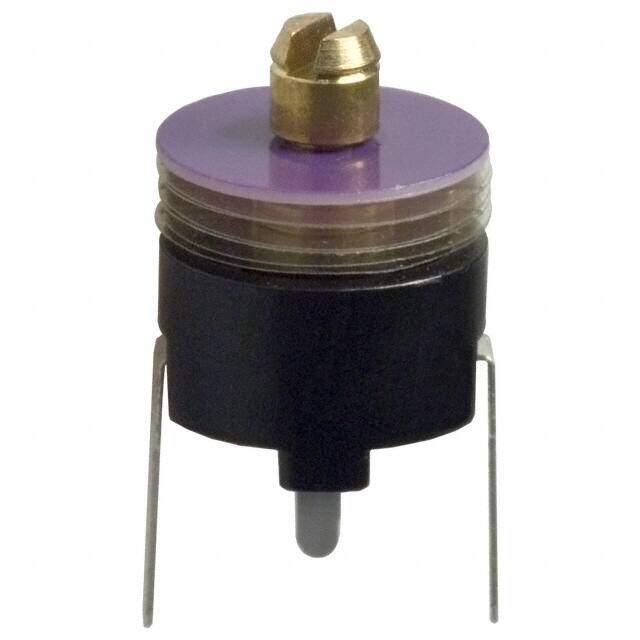

GYA36002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
FILMTRIM? VARIABLE CAPACITOR variable capacitor 0.335Lx0.295W 8.50mmx7.50mm 3pF~36pF 100V
PDF
/
Buying Options
Total Price: USD $9.72
Unit Price: USD $9.719399
≥1 USD $9.719399
≥200 USD $3.878307
≥500 USD $3.74833
≥1000 USD $3.683997
Inventory: 6112
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Length 8.5mm
Height Seated (Max) 0.402 10.20mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 3pF~36pF
Adjustment Type Top and Bottom
Q @ Freq 1000 @ 1MHz
Size Code 3330
Rated (DC) Voltage (URdc) 100V
Capacitor Type VARIABLE CAPACITOR
Terminal Pitch 5.08mm
HTS Code 8532.30.00.90
Voltage - Rated 100V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.335Lx0.295W 8.50mmx7.50mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~70°C
Physical
Dielectric Material Polypropylene (PP)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
