GYA36000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

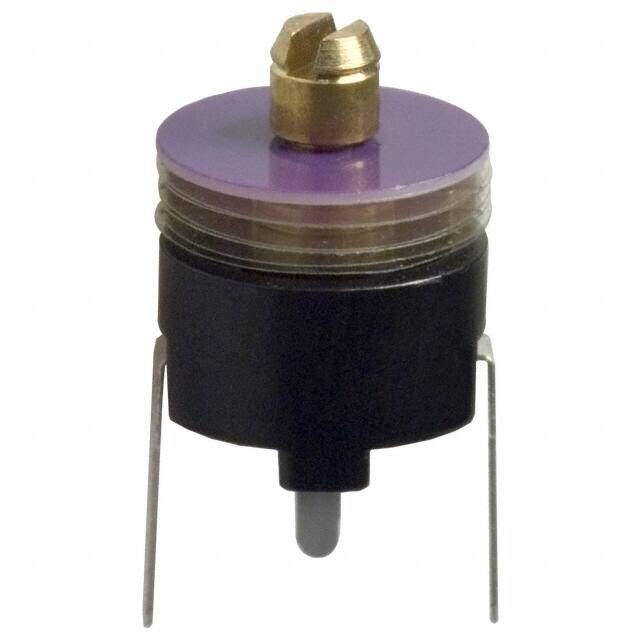

VARIABLE CAPACITOR FILMTRIM? 100V 3pF~36pF 300ppm/C 0.335Dia 8.50mm
PDF
/
Inventory: 5586
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polypropylene (PP)
Technical
Operating Temperature -40°C~70°C
Packaging Bulk
Published 2001
Series FILMTRIM?
Size / Dimension 0.335Dia 8.50mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Radial
ECCN Code EAR99
Temperature Coefficient 300 ppm/°C
HTS Code 8532.30.00.90
Voltage - Rated DC 100V
Lead Pitch 7.62mm
Capacitor Type VARIABLE CAPACITOR
Size Code 3330
Q @ Freq 1000 @ 1MHz
Adjustment Type Top and Bottom
Capacitance Range 3pF~36pF
Adjuster Orientation VERTICAL
Dimensions
Height 10.2108mm
Height Seated (Max) 0.402 10.20mm
Length 8.5mm
Width 7.7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
