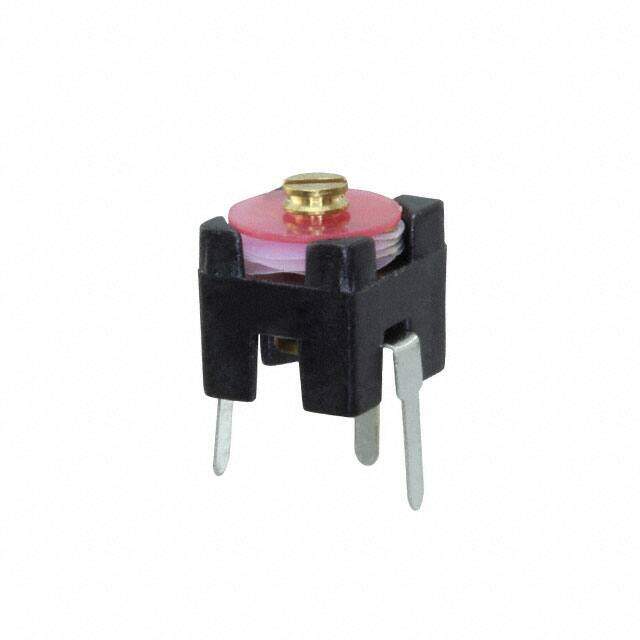

GXE18011
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
CAP TRIM 2.5-18PF 300V THRU HOLE
PDF
/
Buying Options
Total Price: USD $6.66
Unit Price: USD $6.65509
≥1 USD $6.65509
≥200 USD $2.655997
≥500 USD $2.56672
≥1000 USD $2.523394
Inventory: 5054
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polytetrafluoroethylene (PTFE)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2002
Series FILMTRIM?
Size / Dimension 0.291Lx0.264W 7.40mmx6.70mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 300V
HTS Code 8532.30.00.90
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 300V
Size Code 2926
Q @ Freq 1500 @ 1MHz
Adjustment Type Top and Bottom
Capacitance Range 2.5pF~18pF
Adjuster Orientation VERTICAL
Dimensions
Height Seated (Max) 0.315 8.00mm
Length 7.4mm
Width 6.7mm
Compliance
RoHS Status RoHS Compliant
