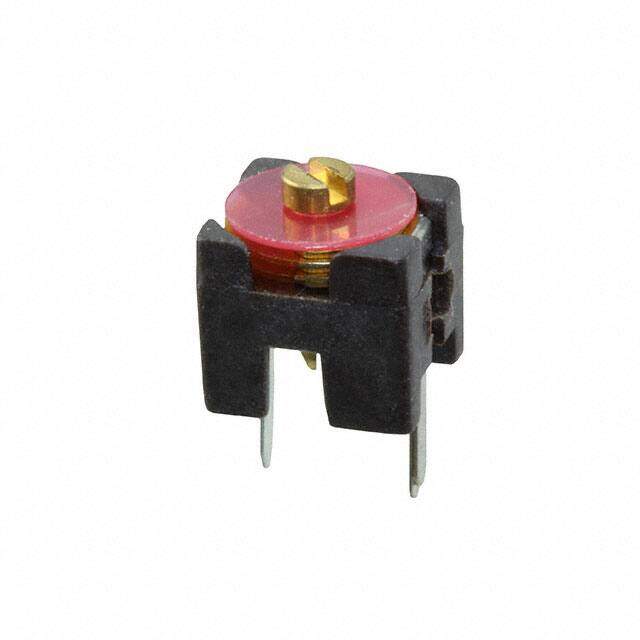

GXE18001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
CAP TRIM 2.5-18PF 300V THRU HOLE
PDF
/
Buying Options
Total Price: USD $11.17
Unit Price: USD $11.172779
≥1 USD $11.172779
≥200 USD $4.458608
≥500 USD $4.308938
≥1000 USD $4.235415
Inventory: 3714
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 6.7mm
Length 7.4mm
Height Seated (Max) 0.315 8.00mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 2.5pF~18pF
Adjustment Type Top and Bottom
Q @ Freq 1500 @ 1MHz
Size Code 2926
Rated (DC) Voltage (URdc) 300V
Capacitor Type VARIABLE CAPACITOR
Terminal Pitch 5.08mm
HTS Code 8532.30.00.90
Voltage - Rated 300V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.291Lx0.264W 7.40mmx6.70mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Dielectric Material Polytetrafluoroethylene (PTFE)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
