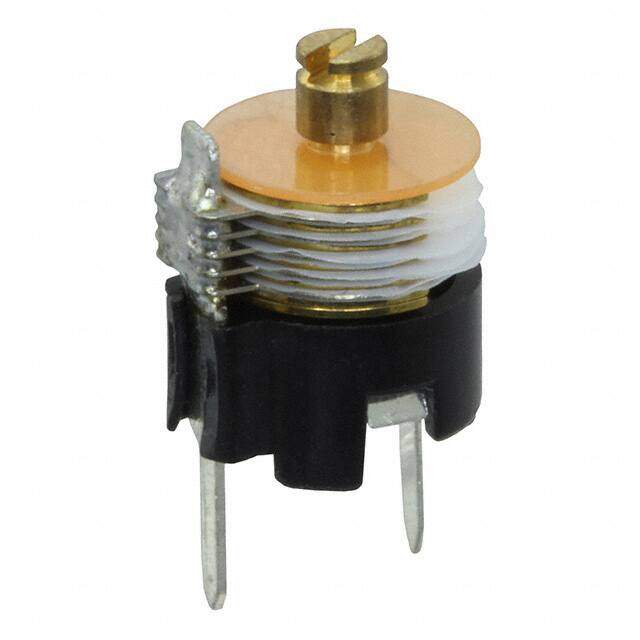

GXA45002

Sprague-Goodman
RoHS
RoHS RoHS compliant
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description CAP TRIM 5-45PF 100V THRU HOLE
PDF
/
Buying Options
Total Price: USD $7.68
Unit Price: USD $7.683091
≥1 USD $7.683091
≥200 USD $3.065622
≥500 USD $2.963215
≥1000 USD $2.913325
Inventory: 5728
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 7.5mm
Length 8.5mm
Height Seated (Max) 0.449 11.40mm

Technical

Adjuster Orientation VERTICAL
Capacitance Range 5pF~45pF
Adjustment Type Top and Bottom
Q @ Freq 1500 @ 1MHz
Size Code 3330
Rated (DC) Voltage (URdc) 100V
Capacitor Type VARIABLE CAPACITOR
Terminal Pitch 5.08mm
HTS Code 8532.30.00.90
Voltage - Rated 100V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.335Lx0.295W 8.50mmx7.50mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Dielectric Material Polytetrafluoroethylene (PTFE)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 30 Weeks
