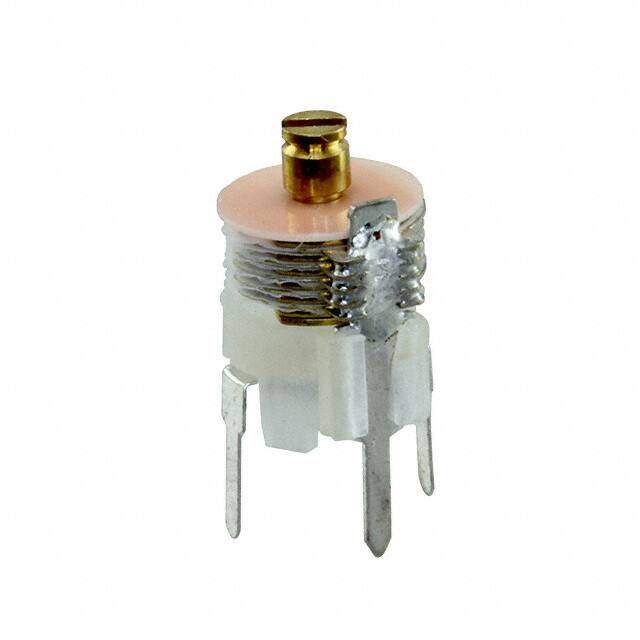

GXA45000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR FILMTRIM? 100V 5pF~45pF 0.335Lx0.295W 8.50mmx7.50mm
PDF
/
Inventory: 2224
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polytetrafluoroethylene (PTFE)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2002
Series FILMTRIM?
Size / Dimension 0.335Lx0.295W 8.50mmx7.50mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 100V
HTS Code 8532.30.00.90
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 100V
Size Code 3330
Q @ Freq 1500 @ 1MHz
Adjustment Type Top and Bottom
Capacitance Range 5pF~45pF
Adjuster Orientation VERTICAL
Dimensions
Height Seated (Max) 0.449 11.40mm
Length 8.5mm
Width 7.7mm
Compliance
RoHS Status RoHS Compliant
