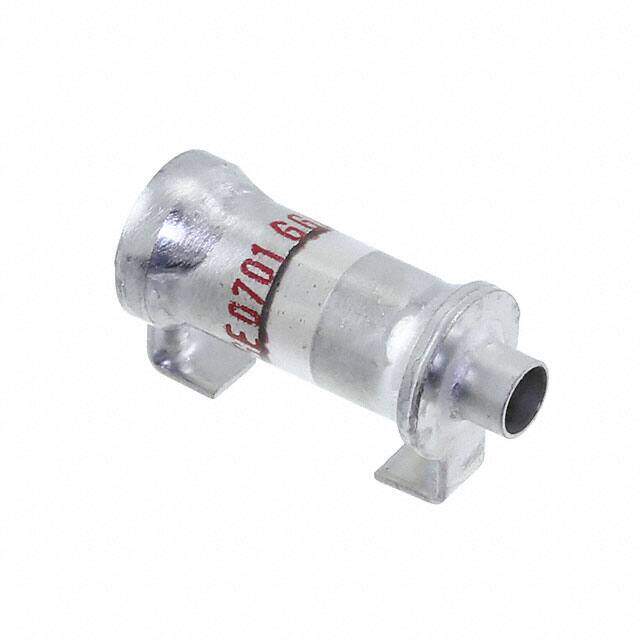

GGN8R533
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
CAP TRIM 0.8-8.5PF 750V SURF MNT
PDF
/
Buying Options
Total Price: USD $25.52
Unit Price: USD $25.52
≥1 USD $25.52
≥10 USD $25.02016
Inventory: 88
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Terminal Shape J BEND
Dielectric Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2013
Series PISTONCAP?
Size / Dimension 0.312Dia 7.92mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 750V
HTS Code 8532.30.00.10
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 750V
Q @ Freq 500 @ 20MHz
Adjustment Type Side
Capacitance Range 0.8pF~8.5pF
Adjuster Orientation HORIZONTAL
Multi-turn 1
Dimensions
Height Seated (Max) 0.673 17.10mm
Compliance
RoHS Status RoHS Compliant
