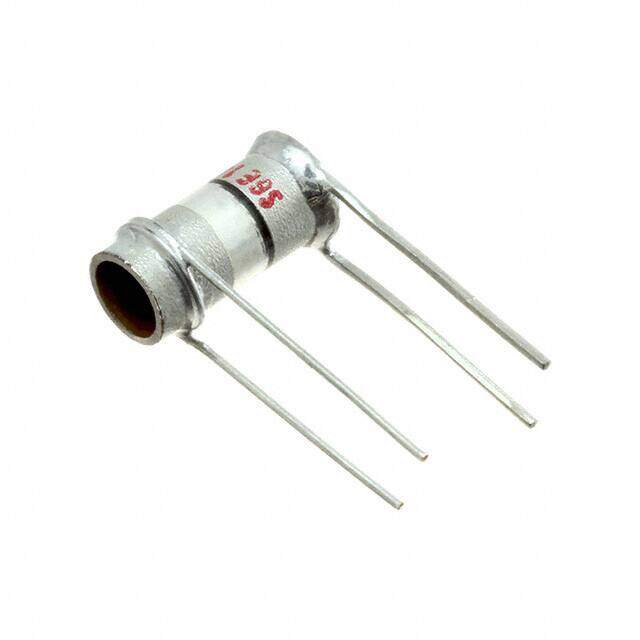

GGC8R500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
CAP TRIMMER 0.8-8.5PF 750V TH
PDF
/
Inventory: 5754
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.562 14.27mm
Technical
Multi-turn 1
Adjuster Orientation HORIZONTAL
Capacitance Range 0.8pF~8.5pF
Adjustment Type Side
Q @ Freq 500 @ 20MHz
Rated (DC) Voltage (URdc) 750V
Capacitor Type VARIABLE CAPACITOR
Reference Standard MIL-C-14409B
HTS Code 8532.30.00.10
Voltage - Rated 750V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.312Dia 7.92mm
Series PISTONCAP?
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Dielectric Material Glass
Terminal Shape WIRE
Surface Mount NO
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
